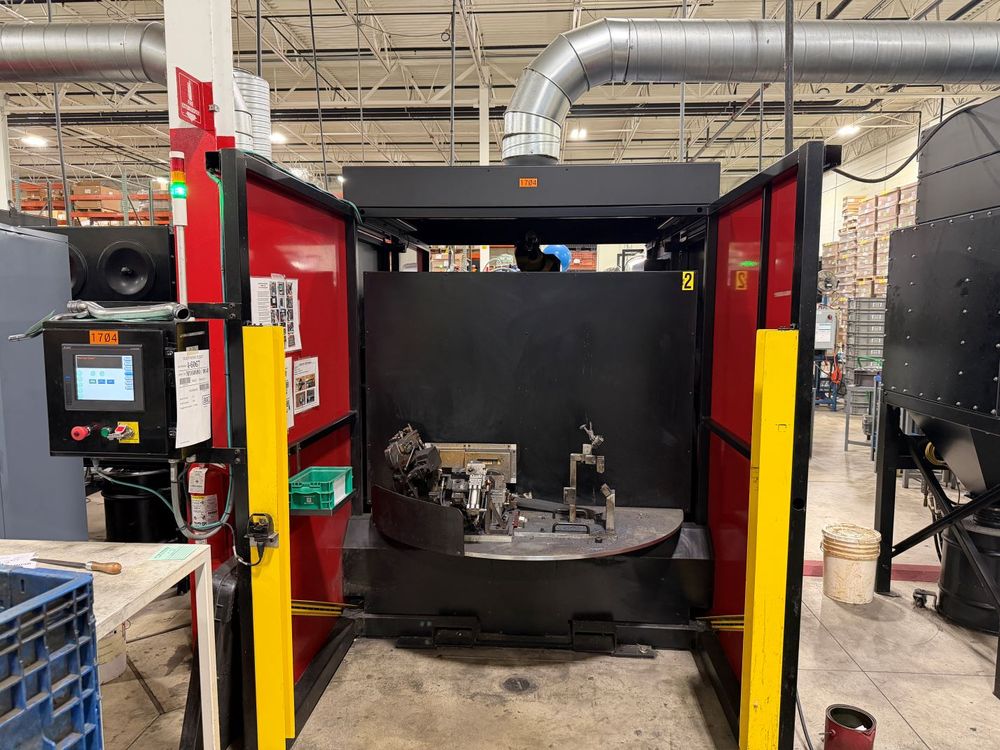

Lincoln Electric System 20 6 Axis 12 kg

Robot model Fanuc Arc Mate 100iD
Reach 1420 mm
Repeatability ±0.02 mm
Payload capacity 12 kg
Input power 460 V 3-phase 60 Hz 30 A fused at 20 A
Positioner Fast Index servo driven turntable
Turntable diameter 58 in
Payload per side 250 kg
Sweep diameter 1500 mm
Power source Lincoln Electric Power Wave 450R
Wire feeder Lincoln Electric Autodrive 4R220
Wire capacity solid 0.023–1/16 in
Wire capacity cored 0.035–5/64 in
Wire speed range 0.8–30.5 m/min
Torch Magnum Pro Robotic 550 AC 550 A air-cooled MIG/MAG
Maintenance station Power Ream II with reamer bit 5/8 in
Maintenance station anti-spatter spray unit
Maintenance station pneumatic wire clipper
Communication Ethernet/IP scanner software
Safety DCS position and speed check
Safety DCS safety PMC software
Utilities arc weld utility package
Utilities constant path
Utilities weld equipment library
Utilities monitoring package
Operational tools collision guard
Operational tools payload ID
Operational tools TCP recalibration
Operational tools panel wizard
Operational tools jog retrack and return
Control system Mitsubishi PLC
Control interface Mitsubishi HMI
Pneumatics FRL unit
Pneumatics pressure sensor
Pneumatics safety valve
Fume extraction modular hood with fan and filter unit
Fume extraction VFD controller
Lighting integrated work cell light kit
