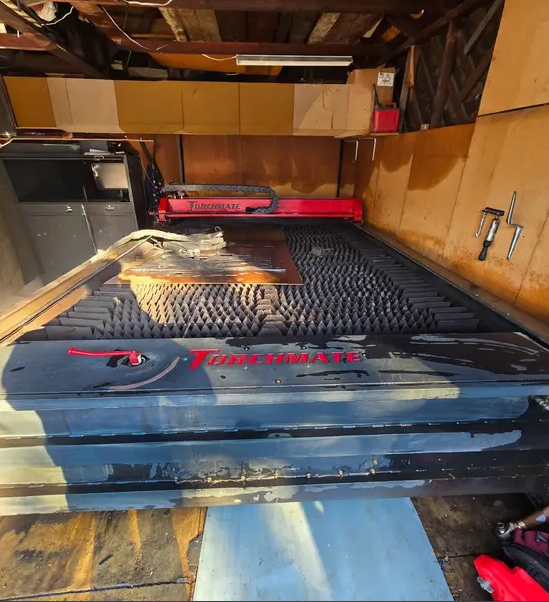

Lincoln ELECTRIC TORCHMATE X CNC CONTROL

Cutting Area 5' x 10'
Pierce Capacity Up to 7/8" (22 mm) mild steel
Plasma Power Source Hypertherm Powermax 105 Amp
X/Y Axis Drive Rack and Pinion with 5:1 reduction
Z Axis Drive Ball Screw / Linear Stage
Traverse Speed Up to 572 IPM
Cut Speed Up to 572 IPM
Software Standard Visual Machine Designer with onboard nesting
Height Control Integrated Arc Voltage Height Control with magnetic breakaway system
Water Table Integrated with adjustable water height
Gantry Steel fabricated gantry with dual Y-axis drive
User Interface Touchscreen HMI
Cable Carrier Full cable carrier system
Gearboxes Low backlash 5:1
Support Slats Angled for increased life
Input Air 8 SCFM @ 90 PSI, dry air filtered to minimum 5 microns
Electrical 15 amp / 110 volt AC or 8 amp / 220 volt AC
