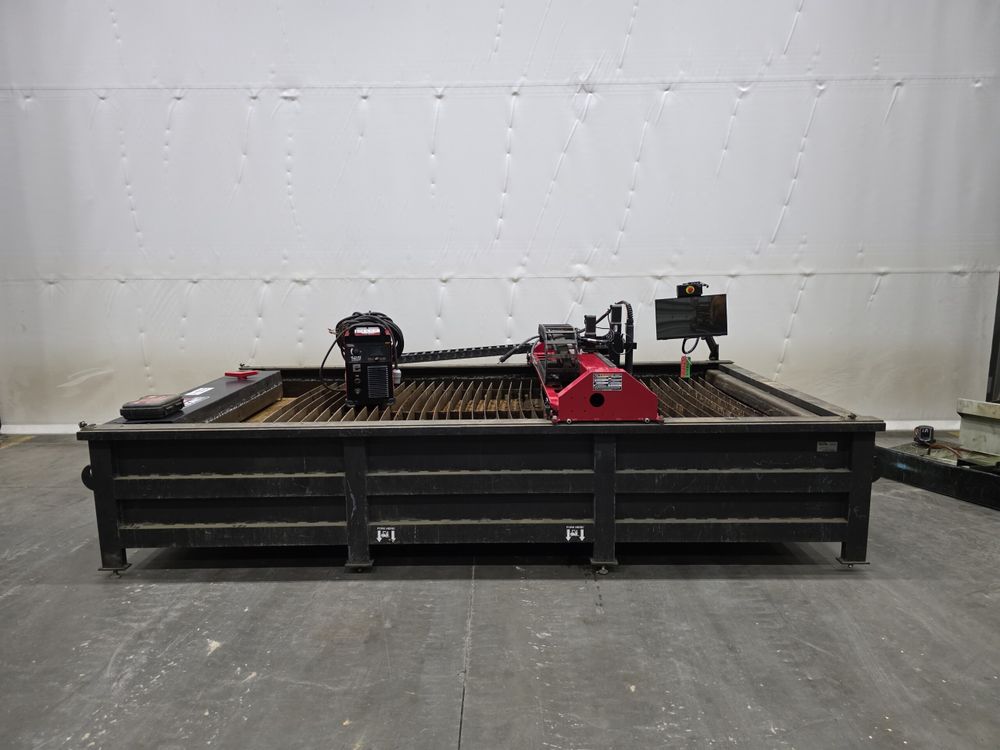

Lincoln Electric TORCHMATE X TMX-510 Motion control system

Cutting area: 5 ft x 10 ft
Machine footprint: 92.54 in x 154.77 in
Traverse speed: up to 572 ipm
Cut speed: up to 572 ipm
X/Y drive: Rack and pinion 5:1 reduction gearbox
Z-axis drive: Ball screw linear stage
X-axis motor: 380 oz·in stepper motor
Y-axis motors: 2 × 380 oz·in stepper motors
Stepper drive: 8 amp micro stepping system
Controller: Motion control system
Interface: Visual Machine Designer HMI touchscreen
Software: Onboard nesting, Torchmate CAD/CAM
Water table: Adjustable height water table included
Gantry structure: Steel fabricated dual Y-axis drive gantry
Guide rail finish: 63 micro finish, precision ground within .001 tolerance
Plasma cutter option: FlexCut 80 or FlexCut 125
FlexCut 125 output current: 20–125 A
FlexCut 125 rated output: 125 A / 175 V / 100% duty cycle
FlexCut 125 input power: 380–575 V / 3 phase / 50–60 Hz
Air pressure requirement: 90–120 PSI
Air flow rate: 550 SCFH @ 90 PSI
Input air quality: Dry filtered air, minimum 5 micron
Air consumption: 8 SCFM @ 90 PSI
Mild steel cutting speed: 210 IPM @ 1/4 in
Mild steel cutting speed: 88 IPM @ 1/2 in
Mild steel cutting speed: 52 IPM @ 3/4 in
Mild steel cutting speed: 32 IPM @ 1 in
Mild steel cutting speed: 14 IPM @ 1.5 in
Stainless steel cutting speed: 260 IPM @ 1/4 in
Stainless steel cutting speed: 94 IPM @ 1/2 in
Stainless steel cutting speed: 45 IPM @ 3/4 in
Stainless steel cutting speed: 25 IPM @ 1 in
Stainless steel cutting speed: 11 IPM @ 1.5 in
Aluminum cutting speed: 275 IPM @ 1/4 in
Aluminum cutting speed: 112 IPM @ 1/2 in
Aluminum cutting speed: 62 IPM @ 3/4 in
Aluminum cutting speed: 40 IPM @ 1 in
Aluminum cutting speed: 16 IPM @ 1.5 in
Input power (machine control): 110 V / 15 A or 220 V / 8 A
System weight: ~3739 lbs (5 ft x 10 ft unit, without water)
