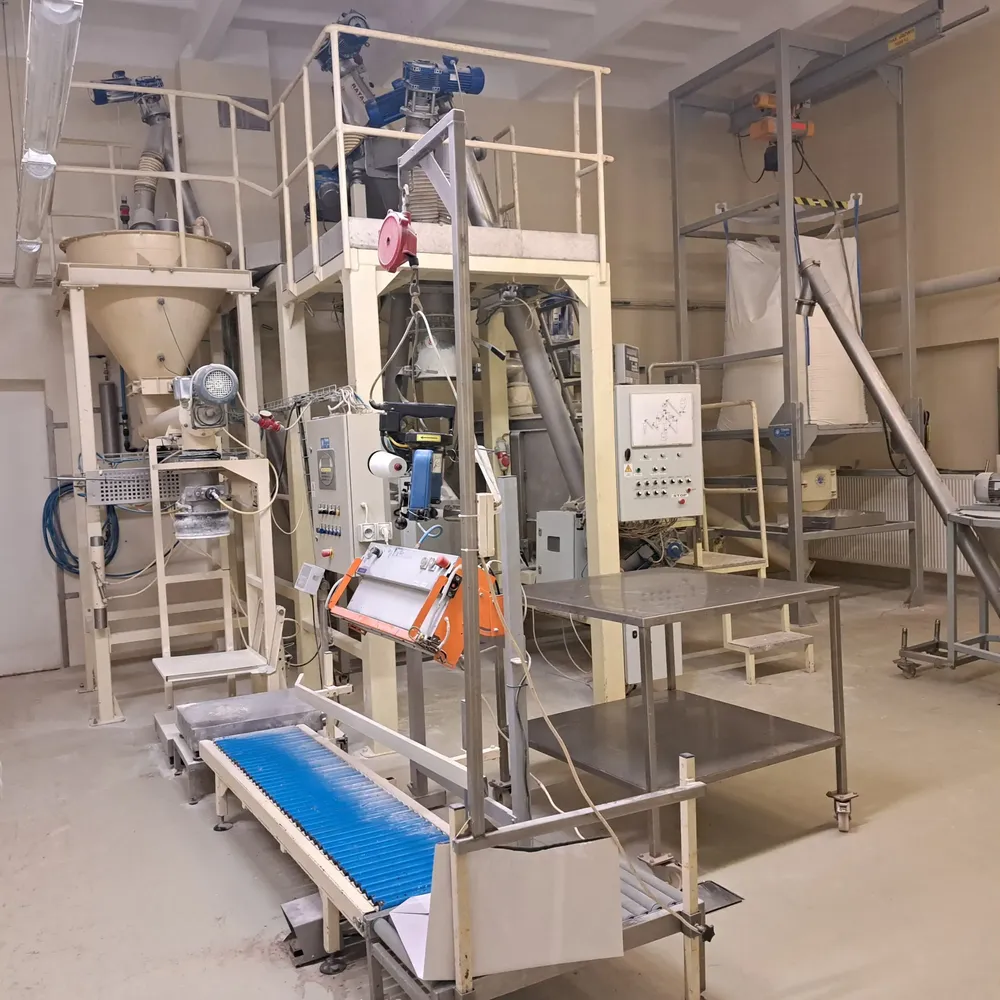

Line for unloading big-bags, mixing, sifting and packing powders into bags

Used line for big-bag unloading, mixing, screening and packing powders into bags

The line includes:
Station for emptying large-capacity bags
Mixer
Conveyor system
Screen
TPL 50 strain gauge bagging line for filling open bags

Main elements of the line:
– Balance pre-tank with supporting structure and distribution tip
– SP150 – 1500 feeding screw feeder with a pneumatically controlled butterfly flap at the outlet
– Bridge load carrier TM 150 E – Max.15O, platform dimensions 600 x 800 mm with connecting cable between platform and weighing indicator 10.5 m
– Pneumatic mounting stub with a diameter of 280 mm
– Pneumatically controlled bag lifting device
– Aspiration tip including connecting adapter, handle and connecting hoses
– Roller conveyor
– Stand with holders for mounting the electrical box
– Pneumatic equipment with compressed air treatment
– Electrical control wall box with automation equipment
– Cabling between the mentioned elements, including cable trays and bridges for their routing

Main technical data (according to ĆSN EN 45 501 + AC)
Metrological static data (according to ĆSN EN 45 501 + AC)
Type 69512520
Accuracy class III
Upper weighing limit (Max) 150 kg
Lower weighing limit (Min) 1 kg
Value of the plot (e = d) Number of plots 0.05 kg
Tare T subtractive 0-150 kg
Permissible weight error 0-25 kg ± 0.025 kg, 25-100 kg ± 0.050 kg, 100-150 kg ± 0.075 kg
