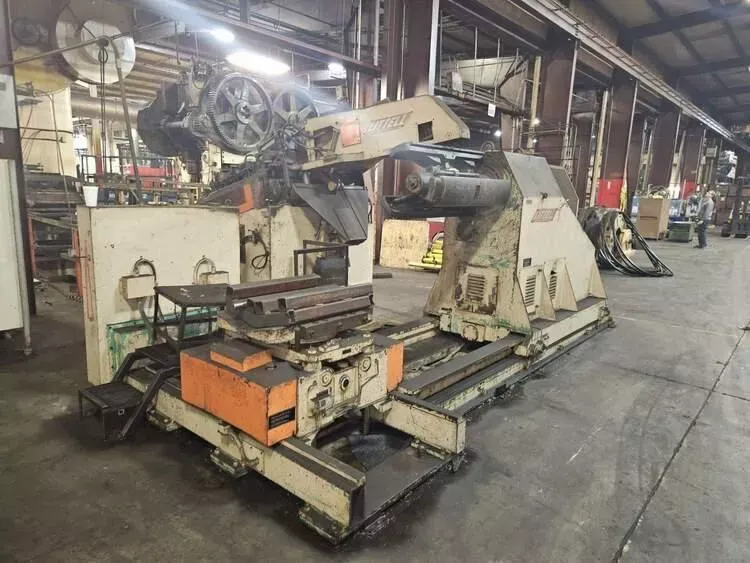

Littell 638D-7PD Powered Straightener Max Coil Capacity: 20,000 lbs

Max Coil Width: 36"
Stock Thickness: .090" at Full Coil Width
Stock Thickness: .187" at 18" Coil Width
Stock Thickness: .250" at 12" Coil Width
Max Coil OD: 66"
Coil ID Range: 20-24"
Traversing Coil Reel
Three Leaf Mandrel Coil Reel
Hydraulic Coil Reel Mandrel Expansion
Air Brake on Main Coil Reel Spindle
Adjustable Tensioning
Threading Drive for Jog Forward and Reverse
Traveling Coil Load Car
Powered Lift and Travel
Powered Left to Right
Powered Rotation
Entry and Exit Precision Powered Coil Straightener Pinch Rolls 6" Diameter
Air Operated Precision Powered Coil Straightener Pinch Roll Adjustment
Seven Coil Straightening Rolls 5.25" Diameter
Powered Bank Type Upper Coil Straightening Roll Adjustments
Adjustable Stock Width Edge Guides
Inclined Straightening Head
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table with Spade Extension
Integrated Coil End De-bender
Variable Speed Drive
Jog Forward and Reverse
Auto/Run Cycle
Emergency Stop
19’ Threading Table
