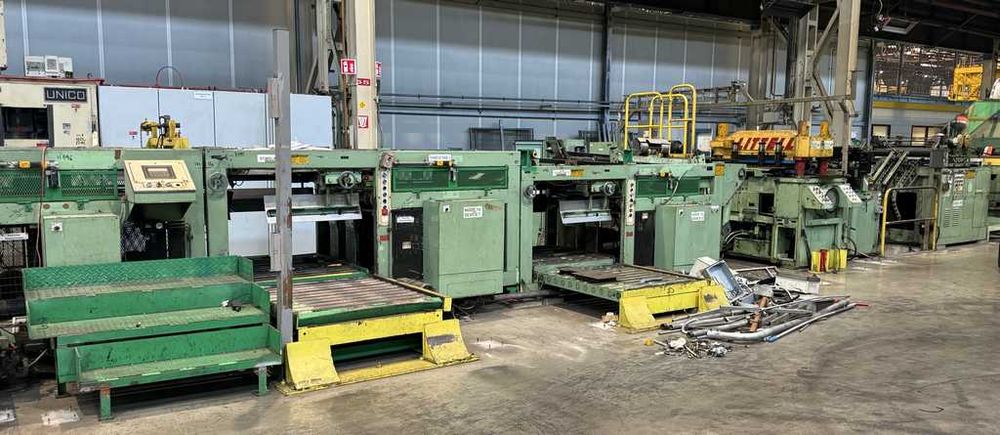

Littell LM2E Cut-To-Length Line

Material thickness range: 0.13–0.50 mm
Maximum coil weight: 30,000 lbs
Maximum sheet width: 40"
Minimum sheet width: 24"
Maximum sheet length: 47.24"
Maximum pallet stack weight: 2.5 tons
Line speed: 100–120 m/min

Entry coil car
Hydraulic expansion uncoiler
Threading drive uncoiler
Straightener
Servo-driven feeder
Littell shear (4-post design)
Cutting knives: 3 (straight and scroll)
Stacker for rejected sheets
Stacker for sheet stacking (2 units)

Cut-to-length line system
