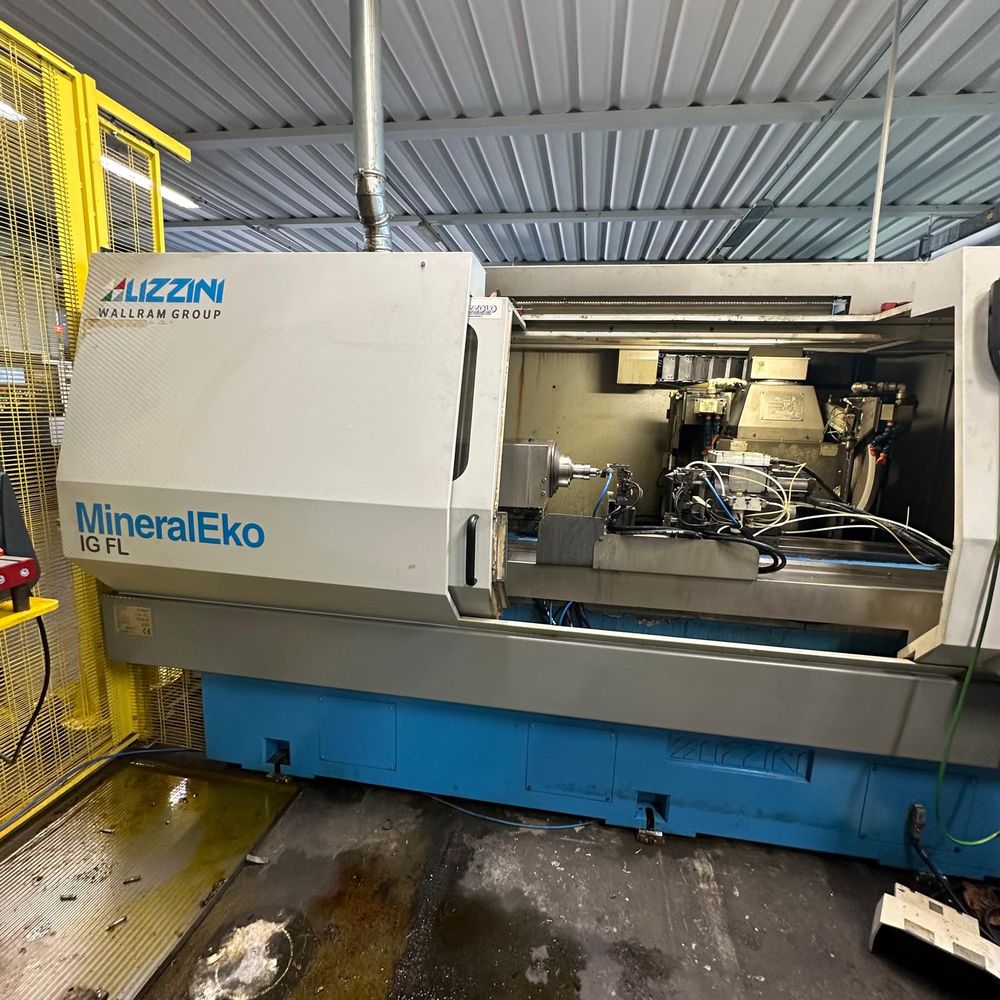

Lizzini SIEMENS 840D 800 rpm IG-FL 2 Axis

LIZZINI IG-FL
Year: 2015

Type: External grinder
CNC: SIEMENS 840D
B-axis equipped
Wheelhead with two grinding wheels (Right/Left configuration)
Gap control
External Wheel Profiling Unit
Multiple External Grinding Cycles
Dressing Cycles with Automatic Wheel Wear Compensation
Marposs Axial Touch Probe
Marposs In-Process Diameter Gauging on Both Wheels
Magnetic Separator with Settling Tank
Paper Filter
Centre Height: 200 mm
Centre Distance: 1000 mm
X Axis Travel: 300 mm
X Axis Resolution: 0.00005 µm
Right and Left Wheel Dimensions: 610 x 120 x 203.2 mm
Wheel Motor Power: 12 kW
Maximum Workpiece Length: 1000 mm
Maximum Workpiece Weight Between Centres: 140 kg
Longitudinal Stroke (Z): 1200 mm
Maximum Z Traverse Speed: 12,000 mm/min
Minimum Z Feed Resolution: 0.0001 mm
Cross Stroke (X): 300 mm
Maximum X Traverse Speed: 10,000 mm/min
Minimum X Feed Resolution: 0.00005 mm
Maximum Wheel Speed: 50 m/s
Maximum Spindle Power: 24 kW
Required Air Pressure: 5.5 bar
Workhead Variable Spindle Speed: 10 – 800 rpm
Workhead Taper: Morse 4 / ASA 5
Tailstock Maximum Quill Stroke: 40 mm
Tailstock Micrometric Adjustment: ± 0.07 mm
Tailstock Taper: Morse 4
Total Machine Weight: 7500 kg
