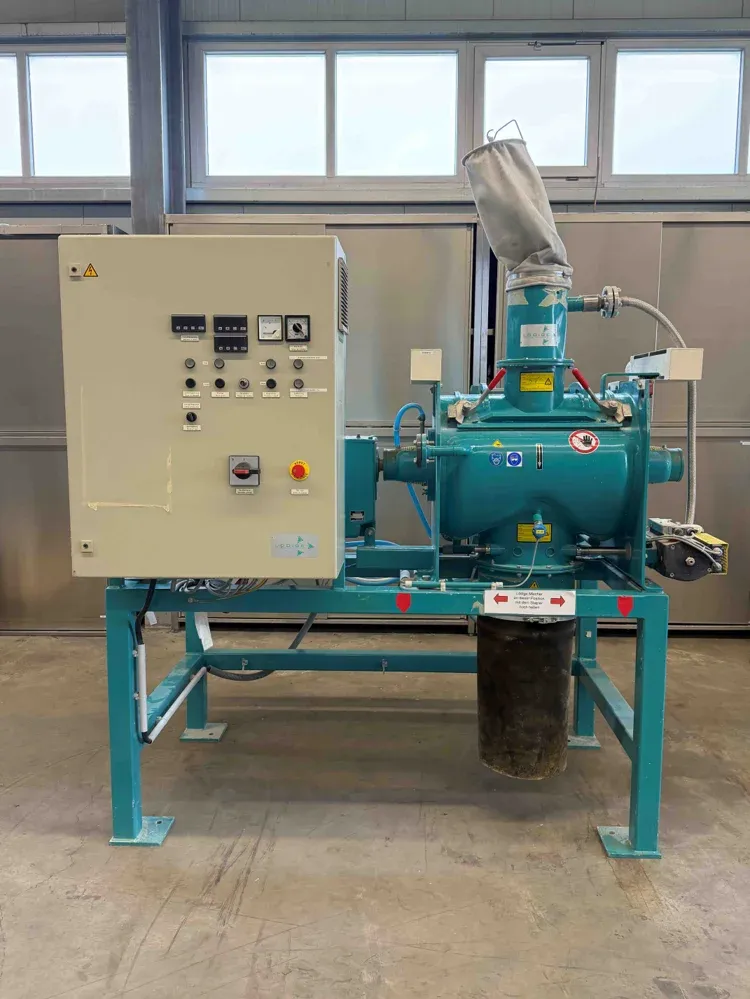

Lodige FM 130 D Ploughshare mixer / dryer

Ploughshare mixer / dryer used
With shredder and double jacket
All parts in contact with the product: 1.4541
Ploughshare mixer / dryer for powders, granules and pastes,
with an additional cutter head in the mixing chamber
for breaking up agglomerates.
Includes an injection nozzle and fittings for introducing liquids.
Technical specifications:
Product chamber: Capacity 130 litres
Temperature min./max. -10/158 °C
Double jacket:
Capacity 12 litres
Pressure 0/5 bar
Temperature min./max. -10/158 °C
Shaft seals, air gap seal
Mixer gear motor 7.5 kW, 1,500 rpm
Cutter head motor, speed-controlled 7.5 kW, 3,000 rpm
Dimensions in cm approx.:
Width 205 x Depth 140 x Height 205
Weight approx. 650 kg
