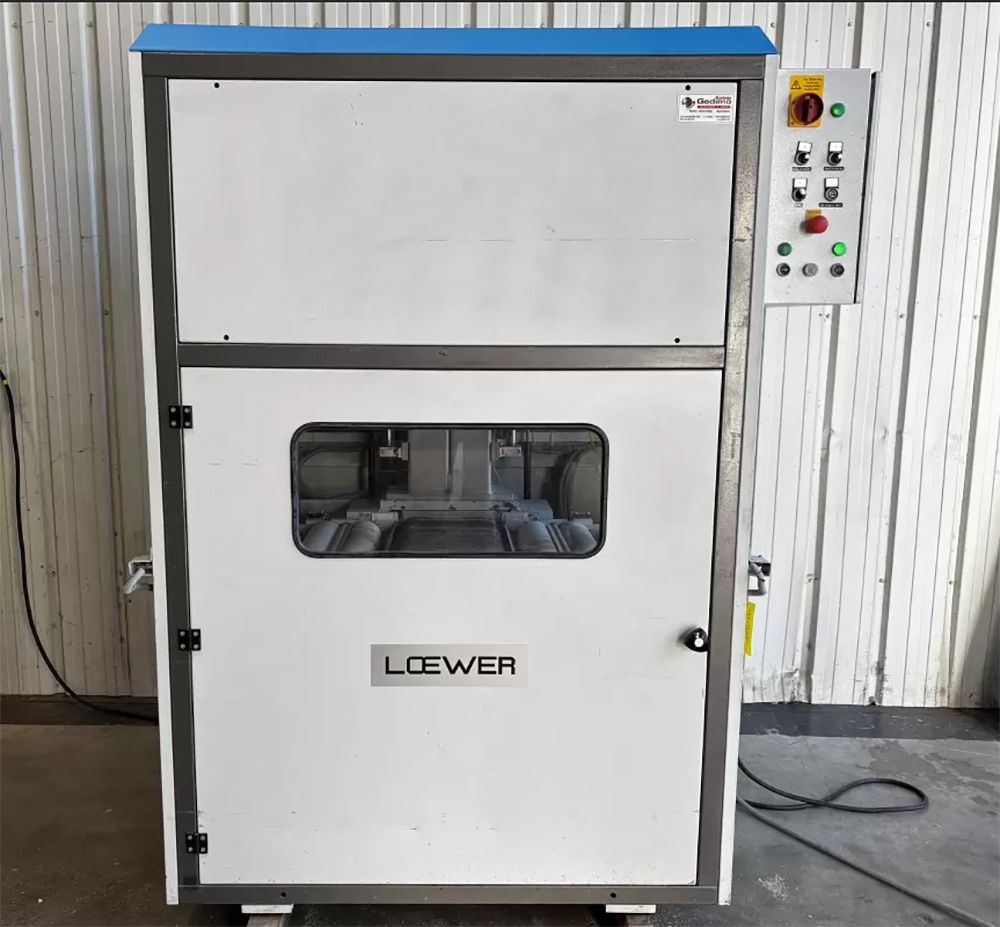

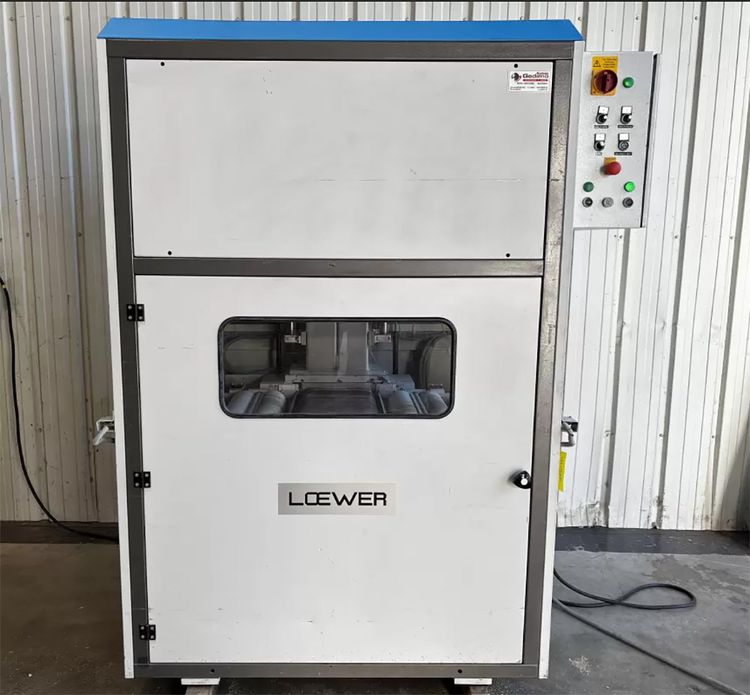

Loewer HBS400UBT

WIDE BELT SANDER
MACHINING CAPABILITIES:
- Height (thickness) 30 to 390 mm
- Maximum part width: 400 mm
- Abrasive belt speed 1300 m/min
- Conveyor belt feed speed 10 m/min
- Strip dimensions: 420 x 1800 mm
Our abrasive belts are stored here.
Please provide us with the selected references.
(Custom orders possible, please contact us)

MACHINE COMPONENTS:
- Roller table, bottom-up strip processing
Table height from the ground: 90 cm
- Automatic detection of the workpiece by cell
- Pneumatic pressure sanding pad
- Automatic belt rotation direction change
MACHINE SPECIFICATIONS :
- General power supply 400V. Three-phase 50Hz IN 22A (35A protection)
- Automatic star-delta starter
- Ammeter(s) for monitoring power consumption?
0.5kW advance motor
7.5 kW belt motor
- Pneumatic tensioning, oscillation and retraction of the rollers
- Pneumatic supply 6 to 8 bar
- Suction, 2 lower vents Ø150 mm
Recommended flow rate: 2200 m³/h Velocity: 20 m/sec
- CE marking, Front/rear emergency stops, Lockable disconnect switch

Dimensions: 1500x1300x2050 h.mm
Weight: 1200 kg
