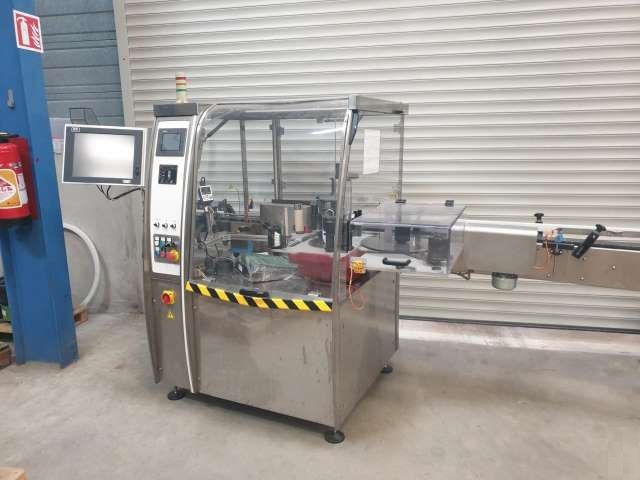

Logopak LOGOMATIC BASIC, Labeler
EUROPE (Western and Northern)
Labeler adhesive label for vials and cans.
Weight : 400 kg
Dimensions : (L x W x H) 3.60 x 1.05 x 1.64 M
Equipped:
- Plastic pallet conveyor width 85 mm - length 3400 mm
- Spacing station using a motorized endless screw (format part)
- Pre-equipped with an “Open-Date” printing station currently without coder
- Printing control station by “Omron” camera
- “Sick” barcode reader
- Label application station with “Germark” head
- “Step” detection of label advancement by photo cell
- Bottle detection by photo cell
- Station for wrapping labels around bottles using a motorized endless belt, length 280 mm - height 60 mm
- Control panel
- Power cabinet with “Siemens S7-200” PLC
- General drive by motor-variator
- Protective casings with security
- Stainless steel frame
Current tools:
- Bottle diameter 40 mm
Maximum capacity:
- Bottle diameter from 16 to 90 mm - height 260 mm
- Label length min 15 - max 220 mm, height min 20 - max 130 mm
Maximum production : approximately 150 vials per minute
Total electrical power: 1 kW
