Loma IQ2, METAL DETECTOR
AMERICA North (USA-Canada-Mexico)
METAL DETECTOR with BELT CONVEYOR,
10x13 vertical opening,
with push-off-reject,
food grade, stainless steel

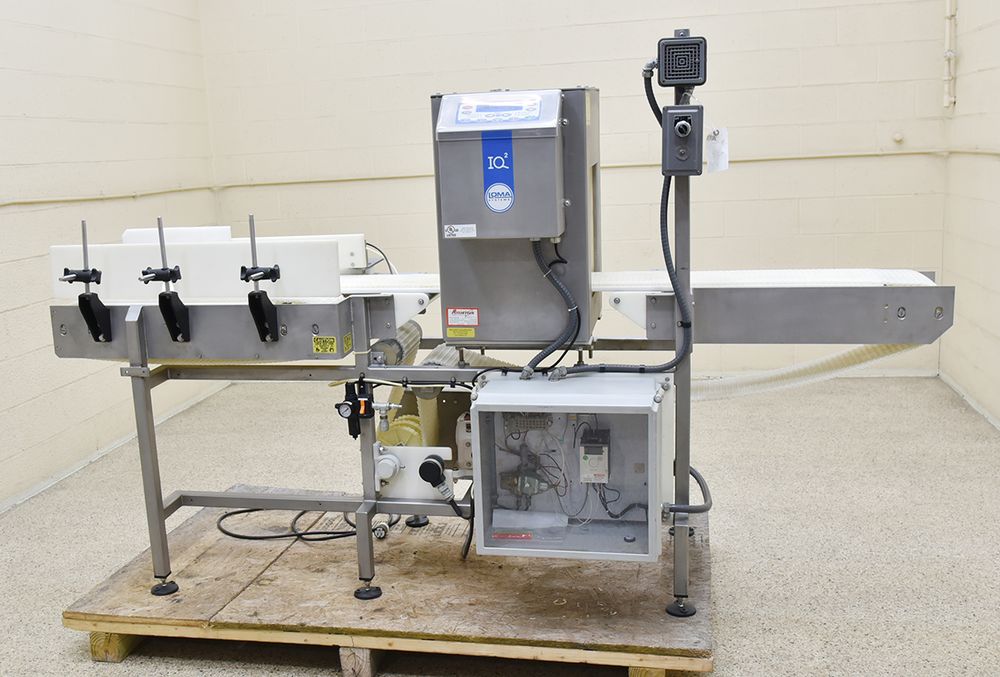

a refurbished Loma IQ2 metal detector, with pneumatic push off reject,
on a stainless steel thru-conveyor.
A food grade belt transfer metal detection system for food processing
and/or other industrial process packaging applications.
Vertical opening ideal for standing containers, standing cartons,
pouches, and other taller than wide products and packages.
FEATURES:
• 12.5 inch high by 9.75 inch wide net usable, vertical aperture opening with the conveyor belt in place.
• Stainless steel belt-transfer through-conveyor with a 96 inch long by 8 inch wide interlocking plastic chain type belt.
• Pneumatic PUSH-OFF reject system with notification buzzer.
o 32 inch long reject conveyor. Note: The reject conveyor is separate from the through-conveyor, so that the reject arm pushes rejected product onto this separate belt.
o 6 inch high adjustable UMHW guide rail.
• Stainless steel search head enclosure.
• Integral digital operator controls for metal detection head.
• 36 inch working height on threaded rod height-adjustable feet.
• 1/2 HP conveyor drive with variable speed control.
• 208 / 230 volt 3 phase electrical input.
