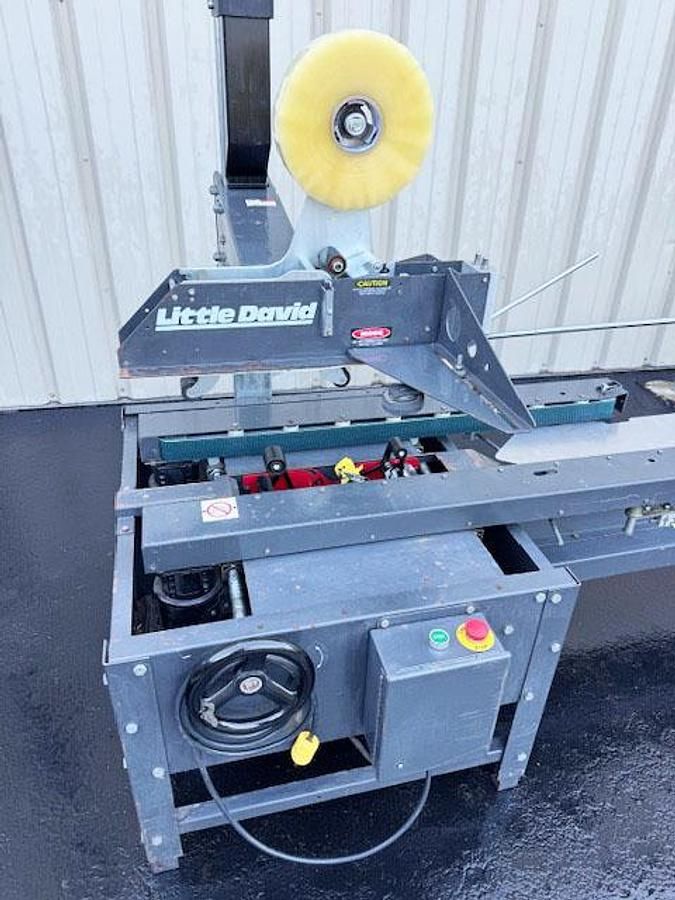

Little David, Loveshaw SP-304 Semi-Auto Uniform Case Sealer

Semi-Auto Uniform Case Sealer with Case Packing “T” Rail
This extended side belt driven Uniform Case Sealer
propels cartons through a folding section,
then folds all major flaps and one upper flap.
Repetitive motion is reduced and productivity
is increased with this innovative Case Sealer design.

Details:
- Capable of Top & Bottom Case Sealing
- Includes (2) Tape Heads for Top & Bottom Case Sealing
- 2” Standard Tape Heads
- E-Stop
- (2) Bottom Side Case Indexing Belts x 48” Long (New Belts Installed)
- Operating Speed 76’ per minute (18.3 m/min)
- Case Range:
Case Height – Min. 4.5” – 24” Max.
Case Width – Min. 4.5” – 25” Max.
Case Length – Min. 6” – 24” Max.
- Handwheel Adjustment for Case Sizes
- Conveyor Elevation 30” (adjustable)
- Operator Controls with E-Stop
- Electrical 110 Volt, 1 Ph, 60 Hz, 4.8 Amp, .25 HP,
- Overall Dimensions 104” L x 42” W x 78” H @ 325 lbs.
