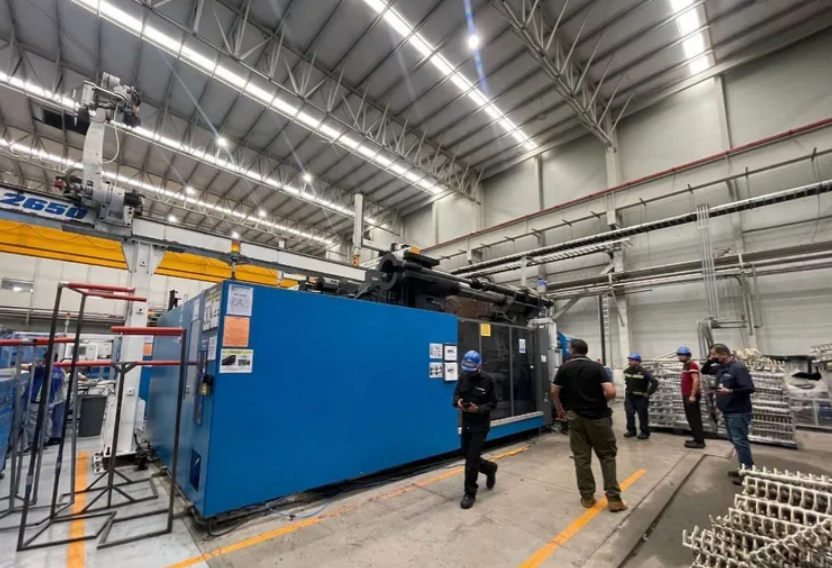

LS The One 2300 2300 T

Type All Electric
Clamping Force Tonnage 2,300 T
Shot Volume (PS) 383.7 oz
Shot Volume (PE) 306.4 oz
Screw Diameter 5.51"
Maximum Injection Pressure 25820 psi
Maximum Holding Pressure 25820 psi
Screw Speed STD 107 rpm
Injection Rate STD 80.3 ft³/min.
Plasticizing Capacity (PS) STD 29,085.9 oz
Tie Bar Distance H 79.92"
Tie Bar Distance V 63.39"
Platen Dimension H 107.09"
Platen Dimension V 96.06"
Maximum Daylight 153.5"
Mold Height Min 31.5"
Mold Height Max 74.8"
Ejector Force 43.1 T
Ejector Stroke 31.5"
Heater Capacity 10.6 kw
Injection Orientation Horz
Machine under power Under power running with mould
Control CNC
Dimensions 47.24 X 11.48
Weight 211,642.14
