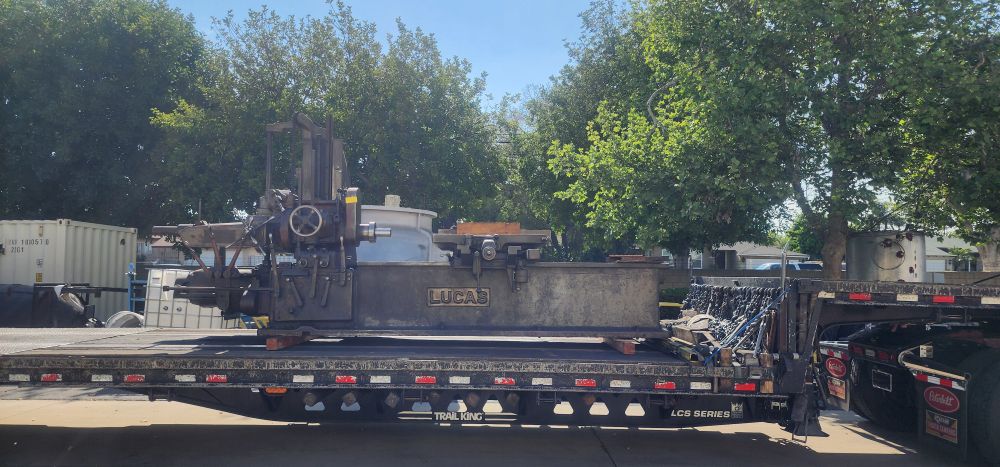

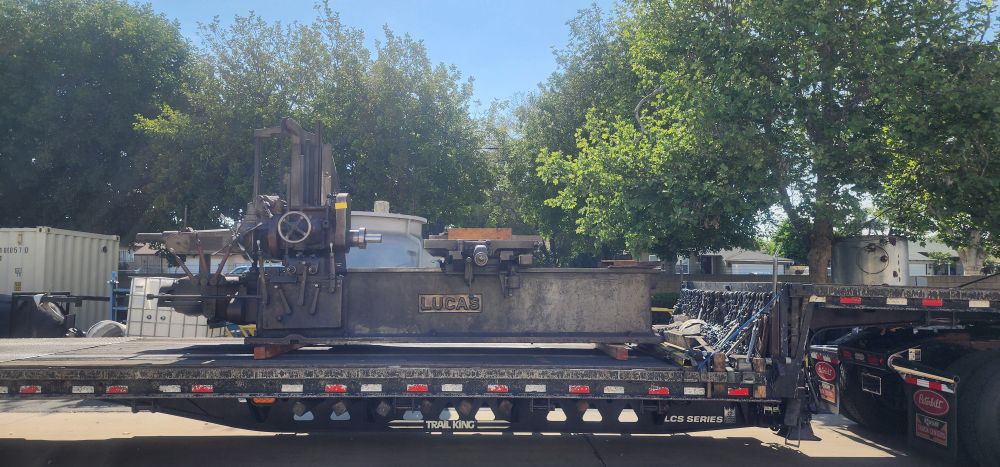

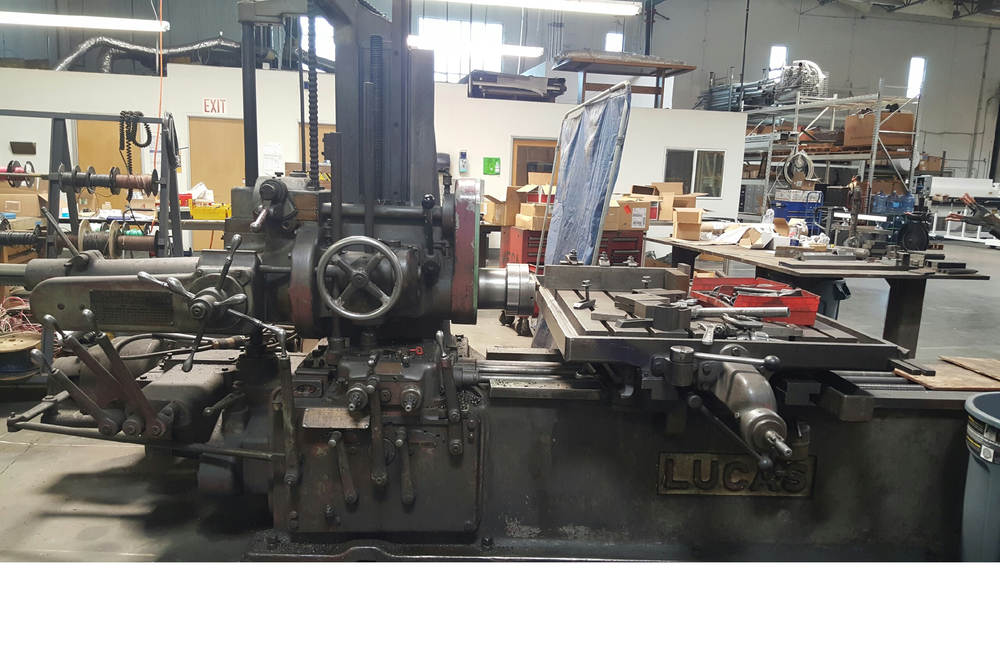

Lucas 41 Precision Horizontal Boring Mil 24" Spindle Feed

Specifications:

#6 Morse Taper 4" diameter spindle
24" Spindle Feed W-Axis
15-1550 Spindle RPM
57" Z-Axis Saddle Travel with the backrest installed
77" saddle travel when backrest is removed
48" Vertical Y-Axis Travel
60" Cross Travel with 36" x 74" Table
Manual Shifting for Feeds, and Speeds, Manual Backgear Shifting
15HP Main motor, originally wired for 220VAC/3-phase/60 Hz
Rotary table included
3 Axes DRO FAGOR
Scales on X, Y, Z
Spindle diameter: approx. 3″–4″ on 41B variant
Vertical head travel (Y-axis): commonly around 48″
Spindle travel (W-axis/Z-axis): typically 36″–48″]
Table cross travel (X-axis): about 48″–60″
Saddle/depth travel: varies ~48″–58″
Table size: often 34″–48″ wide by 62″–68”
Overall machine footprint: approximately 14′ L × 7′–8′6″ W × 9′–10′ H
Spindle motor: around 15 HP
Description:
The Lucas 41 Precision Horizontal Boring Mill is a heavy-duty, precision-engineered machine tool built for boring, milling, drilling, and facing large and heavy workpieces. Manufactured by Lucas Precision, a leader in horizontal boring technology, the Model 41 is designed for accurate machining of large parts, such as molds, dies, castings, engine components, and structural frames.

________________________________________

What It Does

This machine is used for:

• Precision horizontal boring of holes or bores

• Facing large surfaces

• Milling slots, pockets, or profiles on heavy parts

• Drilling or tapping deep holes

• Thread boring and taper boring

• Line boring of large components like housings or castings

Its horizontal spindle orientation and movable column/table design allow for multi-axis machining of very large and complex workpieces.

________________________________________

Key Specifications

(Typical for Lucas 41 series — may vary by exact build year and version)

Specification Detail

Spindle Diameter 4″ (common) or 5″ options available

Spindle Taper #50 NST or proprietary (depending on model)

Spindle Speeds ~10 – 1,200+ RPM (variable speed or gear driven)

Spindle Travel (Quill) ~30″ (depends on version)

Table Size ~48″ × 72″ or larger

Table Travel (X-axis) ~60″ – 96″ or more

Vertical Travel (Y-axis) ~40″ – 60″

Cross Travel (Z-axis) ~40″ – 60″

Facing Head Travel (W-axis) Integrated or optional for precise facing

Motor Power 15–30 HP (varies)

Machine Weight 20,000 – 40,000+ lbs

________________________________________

Features & Capabilities

• Heavy-duty construction: Massive cast-iron frame for vibration resistance

• Multi-axis travel: Allows complex machining on large surfaces

• Power feeds and rapid traverse on all axes

• Precision ground box ways for tight tolerances

• Rotary table (optional or standard) for angular part orientation

• Boring head with large quill for deep-hole accuracy

• Digital Readout (DRO) or CNC upgrade on retrofitted models

________________________________________

Typical Applications

• Boring engine blocks, gearboxes, machine frames

• Machining molds, dies, and press components

• Fabrication of large industrial bases and housings

• Large-part repair and rebuilding

• Precision alignment of features across long surfaces

________________________________________

Industries That Use It

• Heavy equipment manufacturing

• Oil & gas industry

• Aerospace and defense

• Steel mill and power plant support

• Tool & die industry

• Rail and marine maintenance

________________________________________

Summary Description

The Lucas 41 Precision Horizontal Boring Mill is a heavy-duty industrial machine designed for accurate boring, milling, and facing of large workpieces. With its long travels, powerful spindle, and solid construction, it's ideal for large-part machining where precision and rigidity are critical — making it a cornerstone in heavy fabrication, mold-making, and machinery rebuilding applications.
