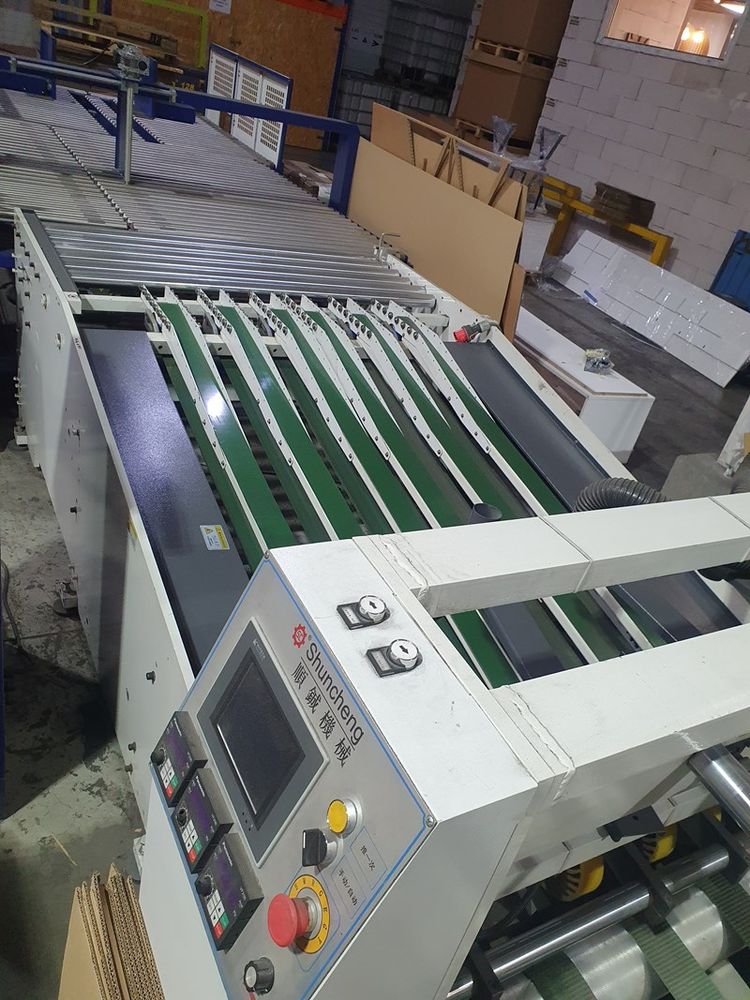

LUKES SC-2400S

Shungchen LUKES SC-2400S
Folder-gluer with automatic feeder, batch alignment, and strapping system.
Designed for up to 6 gluing points.
Semi-automatic machine setup.
The main machine structure is based on independent servo motors.
Equipped with cold glue and hot melt glue systems.
Adjustable belt speed control.
The machine also features an automatic box alignment system, vacuum feeder, remote control panel, and extensive tooling.
Technical Specifications

Board types:
E / B / C / A flute
3-ply and 5-ply corrugated board
Feeding system: Precise, automatic, continuous feeding
Maximum gluing speed: 120 m/min
Box production width: 900 – 2400 mm
Machine dimensions (L × W × H):
16 × 3.5 × 2.1 m
26.5 × 4 × 2.2 m (with counting and strapping line)
Gross weight:
13 tons
16 tons (with counting and strapping line)
Installed power (approx.):
30 kW
40 kW (with counting and strapping line)
