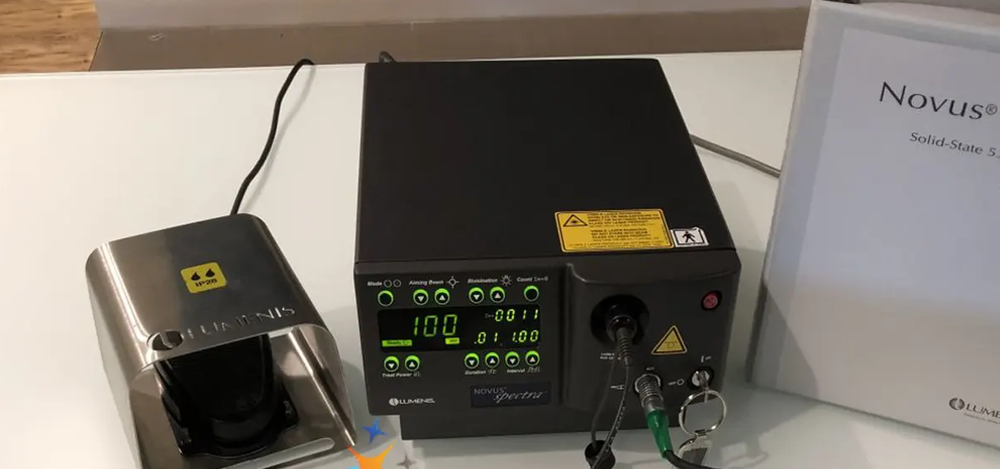

Lumenis Novus Spectra 532 Argon Green Ophthalmic Laser

Lumenis Novus Sepctra 532 Argon Green Ophthalmic Laser
with Zeiss Style Slit (120 or 130 models) Lamp Attachment SLA
This laser is in excellent refurbished condition.
It has been fully serviced, aligned, and calibrated by our trained technicians
and all diode outputs are within range. Full warranty included.
This slit lamp attachment fits Zeiss SL 130 or SL 120 slit lamps.

Manufacture slit lamp and table available for an additional charge.
SureSpot Optics: Sharply defined and evenly distributed power on the retina;
Safe & low-power density at the cornea and the lens as with all Lumenis photocoagulators,
the Novus Spectra incorporates SureSpot Optics technology in all slit lamp adapters.

The unique and patented SureSpot optics technology from Lumenis ensures that the focal point of
the laser beam is maintained on the retina while power density on the cornea and lens is minimized for
increased safety. SureSpot optics also creates a true 50-micron laser spot; that capability distinguishes the
Lumenis technology from other lasers that may have a 100-micron minimum spot size and/or project a fuzzy laser spot on the retina.

In essence, SureSpot optics improves treatment efficacy and precision while reducing the potential for damage to
anteriorsegment tissues. The latter occurrence is especially a concern when using wide-angle lenses
that enhance light uptake by the cornea and lens.

Treatment Beam
Type Frequency-doubled Nd:YAG, diode-pumped solid-state
Wavelength Green: 532 nm
Power output 50–2500 mW

Duty cycle
50 mW = power setting ≤ 500 mW: all settings are available
500 mW < power setting ≤ 1000 mW: duty cycle limited to 75%
1000 mW < power setting: duty cycle limited to 50%
Pulse duration Factory pre-sets starting at 0.01 s up to 3.00 s (for durations greater than 1.00 s, power is limited to 500 mW)
Pulse interval Factory pre-sets starting at 0.05 s up to 1.00 s and single pulse
Pulse counter Counts pulses delivered; range = 0–9999
Laser beam spot size Controlled by delivery system
Illumination The accessory port provides from 0–20 W of electrical power to an external bulb.
Adjustable by pressing the illumination up/down buttons.
CDRH classification Class IV
European MDD Laser Classification Class 4

Aiming Beam
Type Diode
Power Adjustable up to
