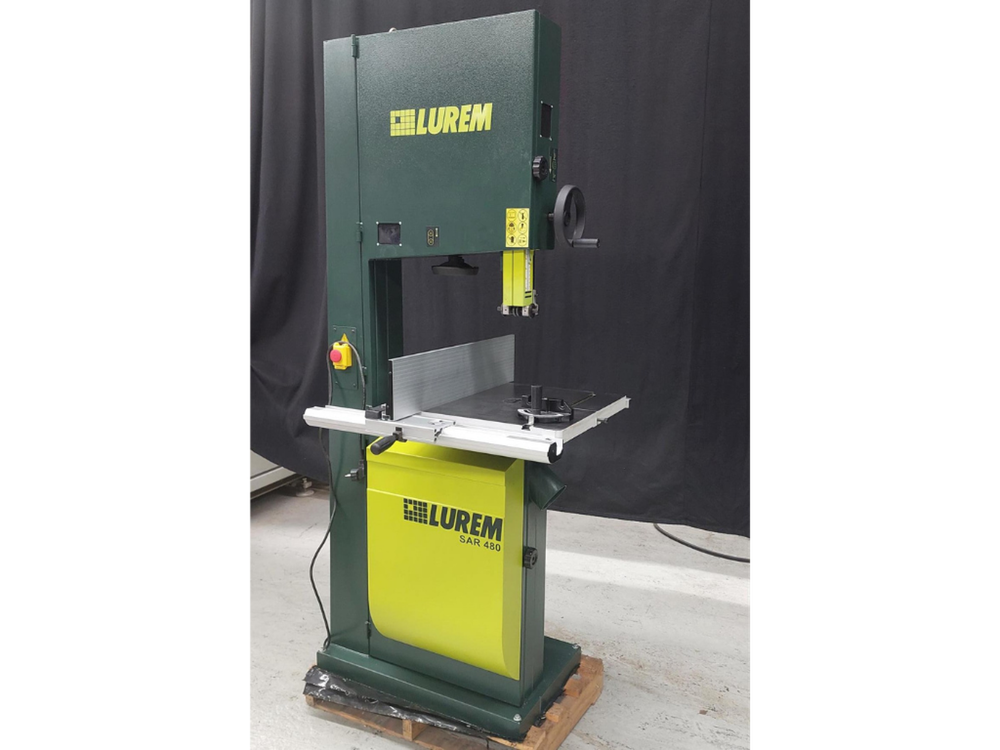

Lurem SAR480

Belt saw
Cast iron balanced wheels with rubber tyres.
Saw blade centred on the wheel.
Adjustable alignment of the upper wheel.
Lever for quick release of the saw blade tension.
Indicator for adjusting the saw blade tension.
Upper and lower adjustable saw blade guide with flanges.
Height-adjustable upper saw blade guide.
Tilting table.
Spacious parallel guide with micrometric adjustment and precision magnifying glass.
Parallel guide can be reversed for machining small workpieces.
Mitre guide.

Diameter of the guide wheels 481 mm
Max. workpiece width  462 mm
Max. workpiece height 300 mm
Table dimensions 480 x 480 mm
Table tilt 20 °
Min. / Max. saw blade length 3628 / 3636 mm
Min. / Max. Saw blade width 10 / 25 mm
Extraction opening diameter 100 mm
Single-phase motor 230V 50Hz 2.7 hp
Working height 950 mm
Weight 174 kg
