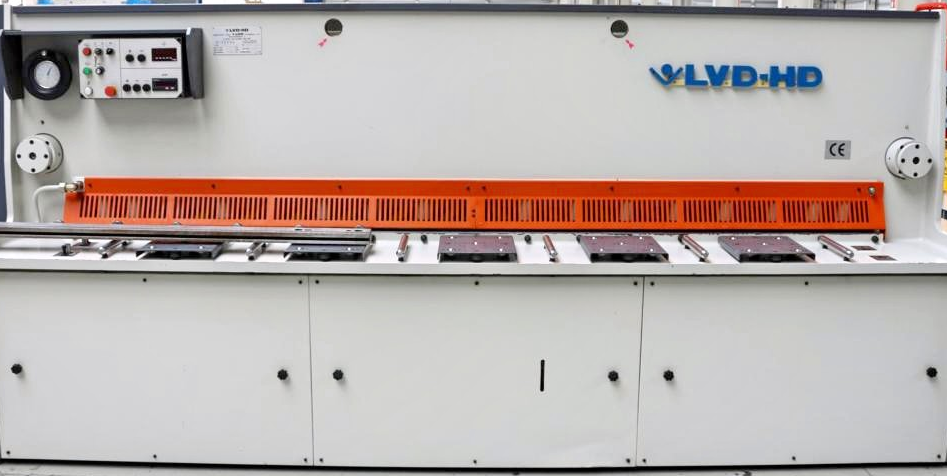

LVD CS 31/6

LVD CS 31/6
2008

Sheet width 3100 mm
Plate thickness 6.35 mm
Thickness at stainless steel 4.00 mm
Cutting angle 0.5 - 3.0°
Cutting gap adjustment 0.05 - 0.8 mm
Number of strokes 13 - 45 strokes/min
Backgauge adjustment range 10.0 - 750 mm
Oil volume 120 liters
Motor power 10.0 kW
Machine weight 5500 kg
Machine dimensions (LxWxH) 4045 x 2200 x 1750 mm
Electro-hydraulic guided sheet metal shear
LVD control panel front-left mounted
Electro-hydraulic cutting angle adjustment
Digital actual value display
Manual cutting gap adjustment via front handwheel
Analog value display for cutting gap
Electromotor-driven backgauge with recirculating ball screws
Digital actual position display for backgauge
Rapid traverse for backgauge
Long side stop with T-slot and mm scale
Ball casters and recessed grips on support table
Front finger guard
Rear sheet chute
Rear safety device
Movable foot switch
Original operating manual (Dutch)
From maintenance workshop
Very well-maintained
Few operating hours
