LVD CS 31/6

Sheet width: 3100 mm
Plate thickness: 6.35 mm
Stainless steel thickness: 4.00 mm
Cutting angle: 0.5–3.0°
Cutting gap adjustment: 0.05–0.8 mm
Number of strokes: 13–45 strokes/min
Back stop adjustable: 10–750 mm
Oil volume: 120 l
Engine output: 10.0 kW
Weight: 5500 kg
Machine dimensions (LxWxH): 4045 x 2200 x 1750 mm

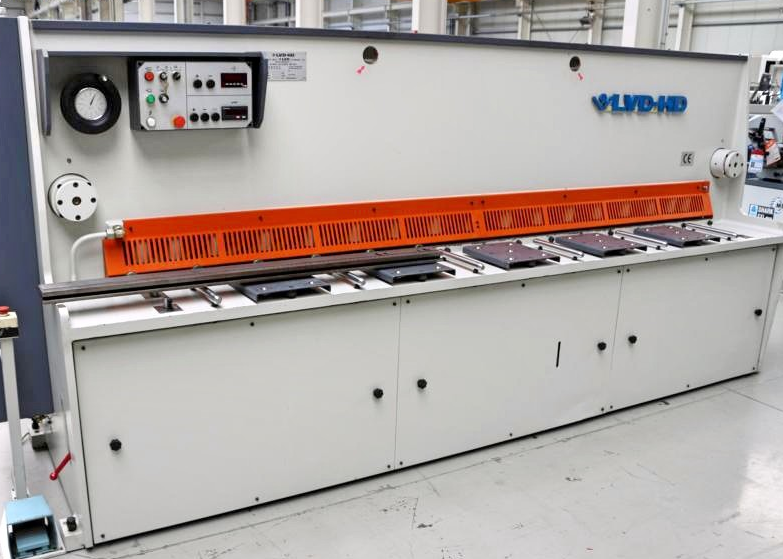

Robust electro-hydraulic slotted-guided sheet metal shear
LVD control panel centrally located on the front (left)
Electro-hydraulic cutting angle adjustment with digital actual value display
Manual cutting gap adjustment via handwheel from the front (left) with analog value display
Electro-motor-driven backgauge with recirculating ball screws
Digital actual position display for backgauge
Rapid traverse for backgauge
1x long side stop with T-slot and mm scale
Ball casters and recessed grips in the support table
Front finger guard
Rear sheet chute
Rear safety device
1x freely movable foot switch
Original operating manual (Dutch)
