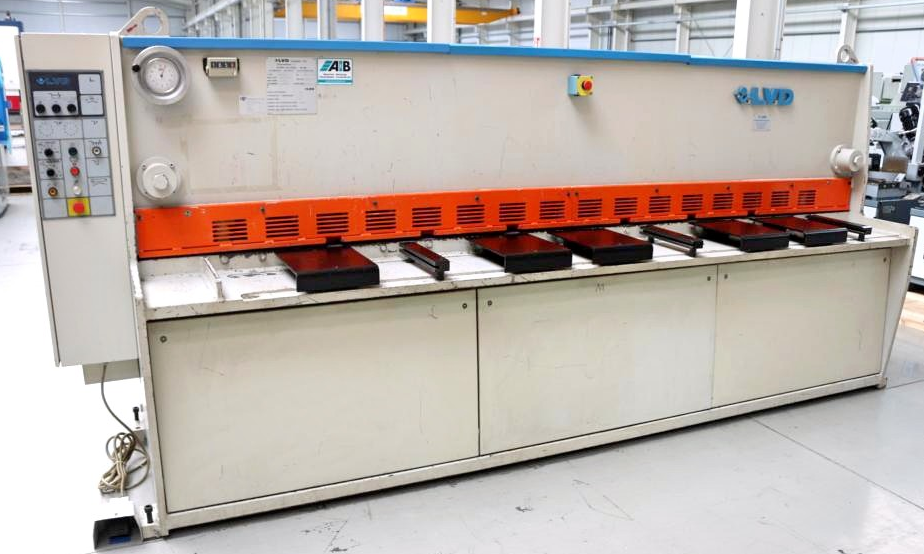

LVD HST-C 31/6

sheet width 3100 mm
plate thickness 6.35 mm
stainless steel thickness 4.00 mm
cutting angle 0.5–3.0°
cutting gap adjustment 0.05–0.8 mm
strokes 12–50/min
back stop adjustable 5.0–750 mm
oil volume 120 l
engine output 7.5 kW
weight 6400 kg
machine dimensions 4045 x 1783 x 1750 mm
robust electro-hydraulic sheet metal shear
guide rail design
LVD control panel centrally located at front
electro-hydraulic cutting angle adjustment
manual cutting gap adjustment from front via handwheel
analog value display
electro-motor-driven backgauge with recirculating ball screws
continuously variable adjustment range
analog position display
rapid traverse possible
ball transfer units in support table
recessed grips in support table
front finger guard
freely movable foot switch
two emergency stop buttons at front
original operating instructions
movable sheet support device for thin sheet metal blanks
extra-long side stop 3000 mm with support leg
used set of replacement blades
