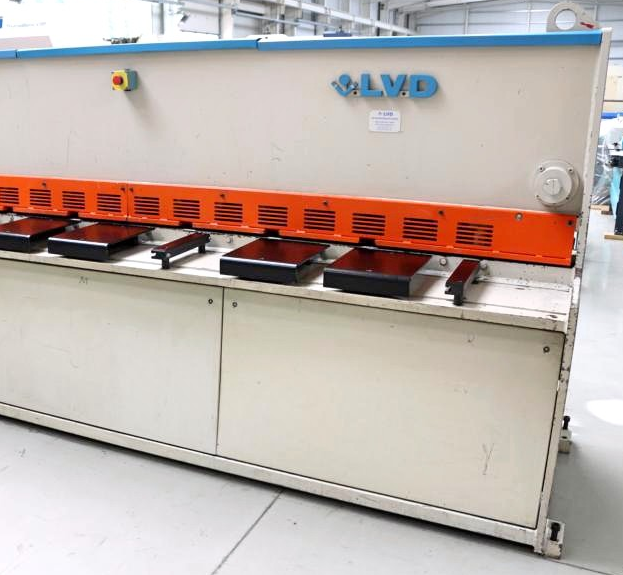

LVD HST-C 31/6

Sheet Width – 3100 mm
Plate Thickness – 6.35 mm
Thickness at Stainless Steel – 4.00 mm
Cutting Angle – 0.5 - 3.0 °
Cutting Gap Adjustment – 0.05 - 0.8 mm
Number of Strokes – 12 - 50 strokes/min
Back Gauge Adjustable – 5.0 - 750 mm
Oil Volume – 120 l
Engine Output – 7.5 kW
Weight – 6400 kg
Machine Dimensions L-W-H – 4045 x 1783 x 1750 mm
Robust electro-hydraulic sheet metal shear
Guide rail design
LVD control panel centrally located at front
Electro-hydraulic cutting angle adjustment
Manual cutting gap adjustment via handwheel
Analog value display for cutting gap
Electro-motor-driven backgauge with recirculating ball screws
Continuously variable backgauge adjustment
Analog position display for backgauge
Rapid traverse for backgauge
Ball transfer units and recessed grips in support table
Front finger guard
Freely movable foot switch
2x Emergency stop buttons at front
Original operating instructions
Movable sheet support device for thin sheets
Extra-long side stop – 3000 mm with support leg
Used set of replacement blades
