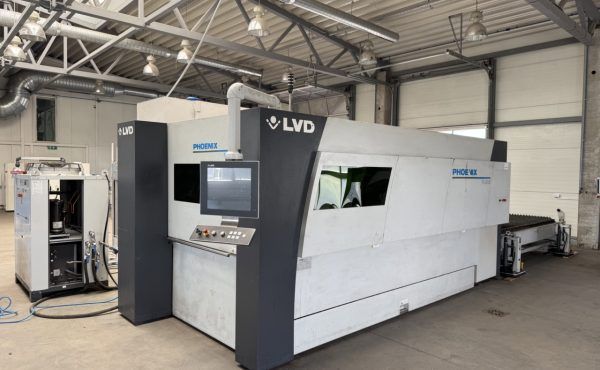

LVD PHOENIX FL 3015 FIBER LVD Touch-L

X-axis travel: 3185 mm
Y-axis travel: 1560 mm
Z-axis travel: 130 mm
CNC control: LVD Touch-L
Automatic focus adjustment
Capacitive height sensor
Automatic nozzle changer
Automatic nozzle calibration
Automatic nozzle cleaning
Nozzle magazine: 10 positions
Automatic sheet positioning
Automatic cutting gas selection
Cooling unit
Fume extraction system
Laser source: IPG Fiber
Laser power: 6 kW
Laser cutting head: 10 kW
Maximum sheet size: 3050 × 1525 mm
Maximum X-Y positioning speed: 140 m/min
Positioning repeatability: ±0.025 mm
Maximum table load: 750 kg
Shuttle tables
Shuttle table exchange time: 35 s
Maximum cutting capacity (mild steel, O2): 30 mm
Maximum cutting capacity (mild steel, N2): 8 mm
Maximum cutting capacity (stainless steel, N2): 25 mm
Maximum cutting capacity (aluminium, N2): 25 mm
Maximum cutting capacity (copper, O2): 6 mm
Maximum cutting capacity (brass, N2): 12 mm
Power-on hours: 51,061 h
Cutting hours: 24,262 h
Condition: Excellent
Fully operational
Ready for immediate use
