LVD PPBL 135/40 135 T

Pressure: 135 t
Chamfer length: 4050 mm
Distance between columns: 3150 mm
Daylight: 310 mm
Piston stroke: 130 mm
Throat: 200 mm
Adjustment speed: 100 mm/sec
Working feed: 8.0 mm/sec
Return speed: 65.0 mm/sec
Table width: 180 mm
Table height: 900 mm
Control: ELGO P8822
Pressure: 220 bar
Total power requirement: 8.5 kW
Weight: 8700 kg
Range L-W-H: 4500 x 1700 x 2640 mm

Simple NC electro-hydraulic press brake
ELGO digital control unit P8822
Positioning of back stop (X axis)
Positioning of depth adjustment (Y1 + Y2 axis)
Swiveling control panel, front right
Electro-motorized back stop (X axis)
Digital ELGO position display
2 manually adjustable stop fingers (R + Z axis)
WILA manual table crowning with analogue actual value display

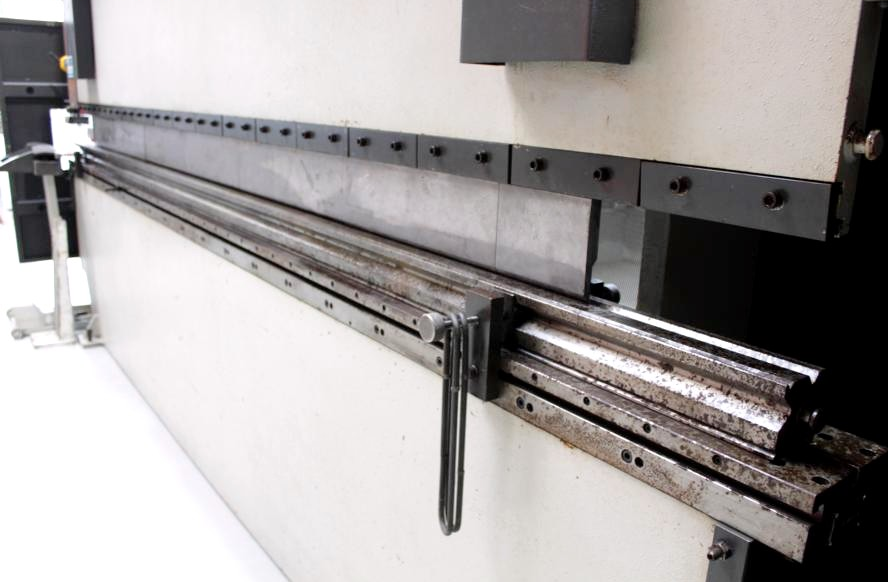

Split deer foot upper tool
Rotatable universal die block 90 x 90 mm with V-openings: 8.0 / 10.0 / 15.0 / 25.0 / 40.0 / 55.0 mm
Freely movable 2-hand/foot control
2 front support arms
Protective device on side and behind machine (doors)
Operating instructions and circuit diagram
