LVD PPEB 170 ton x 3100 mm CNC
Ref :
2728118-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPEB
Pressure :
170 ton x 3100 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

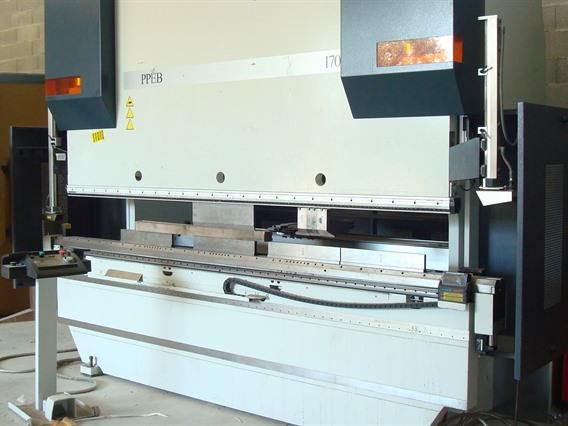

LVD PPEB 170 ton x 3100 mm CNC
Capacity 170 ton x 3100 mm
CNC backgauge
Cadman B + Touch control
Passage between uprights 2600 mm
Maximum stroke 200 mm
Maximum distance between table and ram 400 mm
Throat depth 400 mm
Table width 150 mm
Locking speed 100 mm/sec
Working speed 13 mm/sec
Returning speed 130 mm/sec
Electric motor power 27 kW
Length 4945 mm
Depth 2525 mm
Height 3200 mm
Weight 11 ton
8 axes: Y1 / Y2 / X / X' / Z1 / Z2 / R / V
Willa hydraulic upper and lower tooling
Easy Form Laser measuring system (EFL)
2 movable plate supports
Laser safe security system
