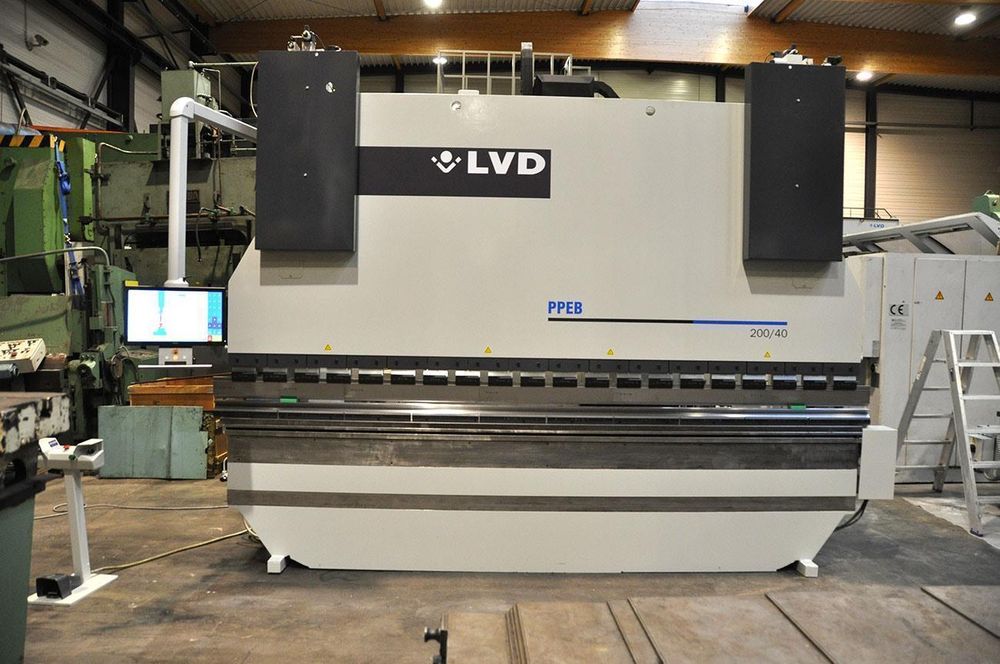

LVD PPEB 200 ton x 4100 mm CNC

Pressing force: 200 t
Bending length: 4100 mm
Backgauge: CNC
Control: 2D Touch
Passage between uprights: 3150 mm
Max stroke: 250 mm
Max distance between table and ram: 500 mm
Throat depth: 350 mm
Table width: 180 mm
Locking speed: 100 mm/sec
Working speed: 10 mm/sec
Returning speed: 92 mm/sec
Electric motor power: 22 kW
Machine weight: 17300 kg
Number of axes: 4 (Y1 / Y2 / X / V)
Upper and lower hydraulic clamping
CNC crowning
Amada system tooling
Bending capacity (steel): 8 mm over 4 m
Bending capacity (steel): 10 mm over 3 m
Bending capacity (steel): 15 mm over 2 m
