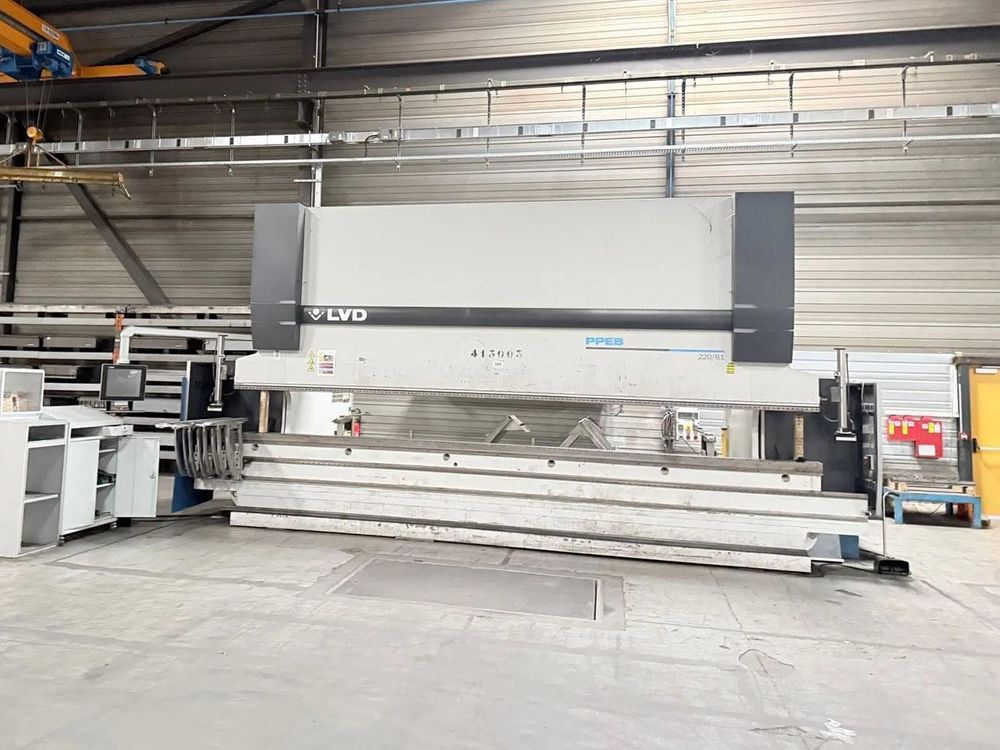

LVD PPEB 220 TON X 6100 MM CNC

Ref : 2780006-3-CP

Condition : Used

Manufacturer : LVD

Model : PPEB

Pressure : 220 TON X 6100 MM CNC

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Press Force: 220 ton
Capacity: 220 ton x 6100 mm
Passage Between Uprights: 5050 mm
Max Stroke: 300 mm
Max Distance Table–Ram: 500 mm
Throat Depth: 405 mm
Table Width: 120 mm
Locking Speed: 120 mm/sec
Working Speed: 21 mm/sec
Returning Speed: 200 mm/sec
Electric Motor Power: 37 kW
Length: 7081 mm
Depth: 2200 mm
Height: 3640 mm
Weight: 24.6 ton

CNC backgauge
Control: Cadman-B Touch
9 axes: Y1
9 axes: Y2
9 axes: X1
9 axes: X2
9 axes: R1
9 axes: R2
9 axes: Z1
9 axes: Z2
9 axes: V
4 front plate supports
Laser safety system
Wila tooling
Hydraulic press brake
Inspection can be arranged
Technical documentation available on request
