1/1

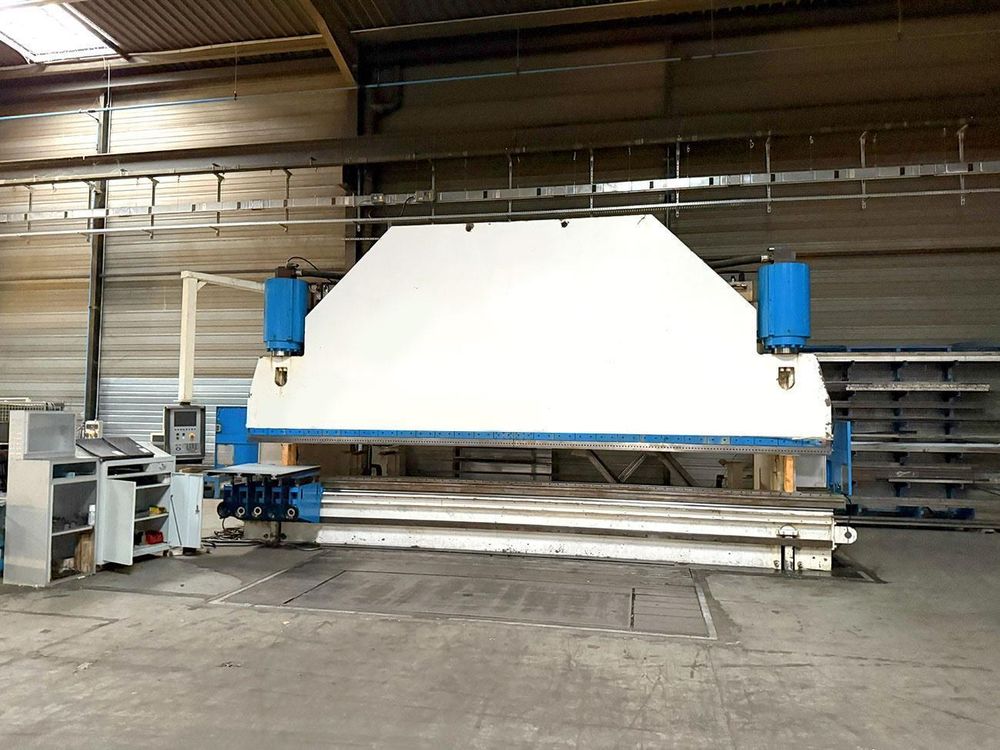

LVD PPEB 400 TON X 7100 MM CNC
Ref :
2780007-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPEB
Pressure :
400 TON X 7100 MM CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press Force: 400 ton
Capacity: 400 ton x 7100 mm
Passage Between Uprights: 6050 mm
Max Stroke: 300 mm
Max Distance Table–Ram: 550 mm
Throat Depth: 350 mm
Table Width: 250 mm
Locking Speed: 90 mm/sec
Working Speed: 9.5 mm/sec
Returning Speed: 65 mm/sec
Electric Motor Power: 37 kW
Weight: 48 ton
CNC backgauge
Control: Cadman
12 axes: Y1
12 axes: Y2
12 axes: X1
12 axes: X2
12 axes: X3
12 axes: R1
12 axes: R2
12 axes: R3
12 axes: Z1
12 axes: Z2
12 axes: Z3
12 axes: V
5 front plate supports
Wila hydraulic tooling adapter
3 backgauge units
Backgauge range: 1250 mm
Hydraulic press brake
Inspection can be arranged
Technical documentation available on request
