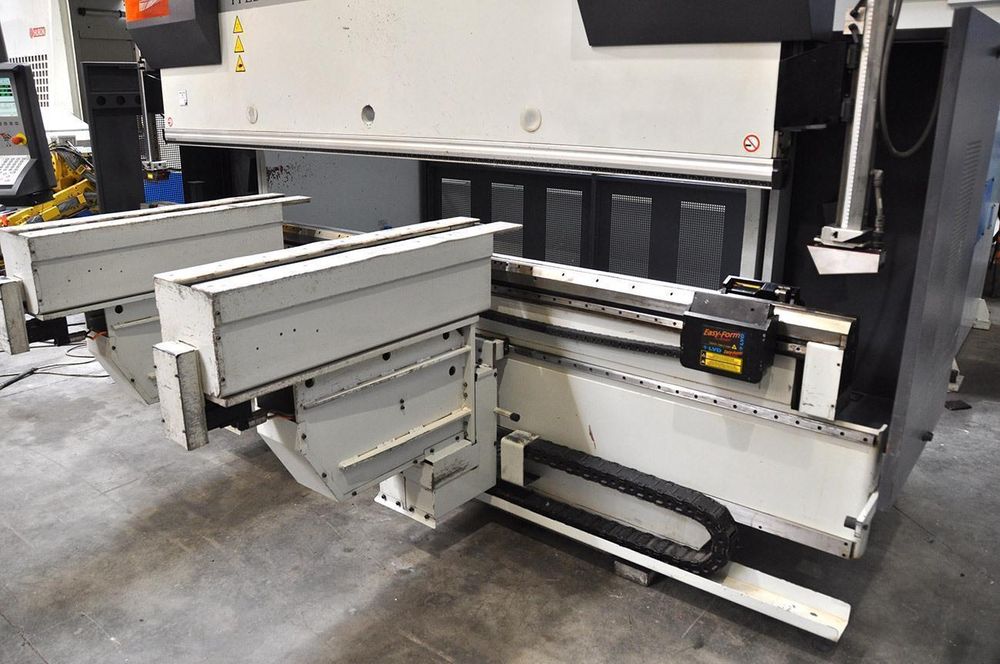

LVD PPEB Turbo 135 ton x 3100 mm CNC
Ref :
2735265-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPEB Turbo
Pressure :
135 ton x 3100 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
135 ton x 3100 mm
CNC backgauge
Cadman Touch control
Passage between uprights: 2600 mm
Max stroke: 200 mm
Max distance between table and ram: 400 mm
Throat depth: 400 mm
Table width: 120 mm
Locking speed: 180 mm/sec
Working speed: 22 mm/sec
Returning speed: 200 mm/sec
Electric motor power: 27 kW
Length: 4200 mm
Depth: 2725 mm
Height: 2865 mm
Weight: 11 ton
Y1 + Y2 + X3 + X4 + R3 + R4 axes
Pneumatic lifting (X3 + X4)
Hydraulic clamping up and down
Turbo version
Easy Form Laser Measuring System (EFL)
Lasersafe security
