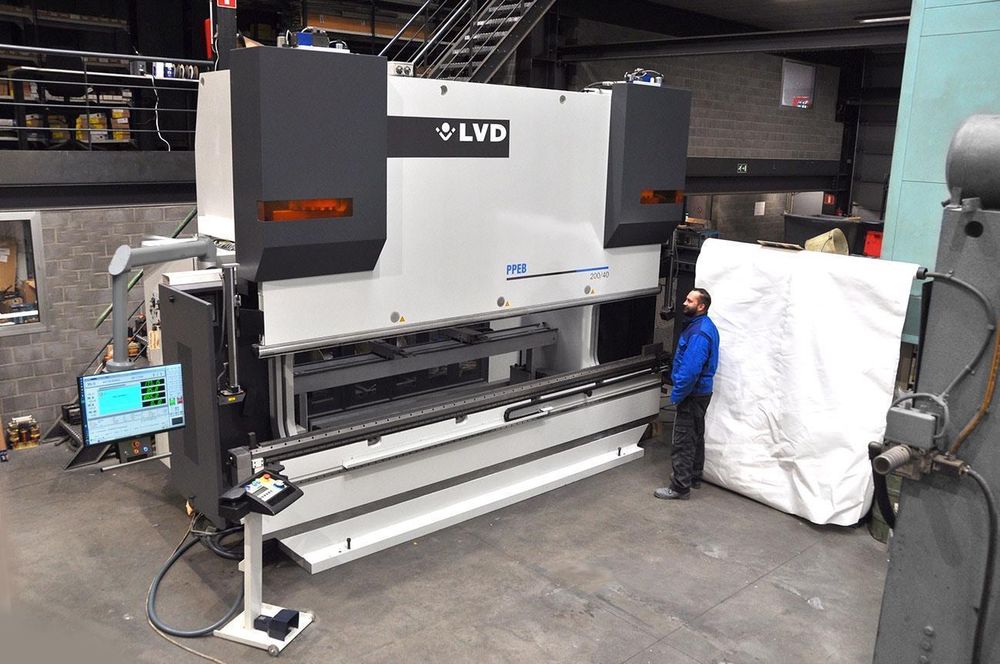

LVD PPEB Turbo 220 ton x 4200 mm CNC
Ref :
2730941-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPEB Turbo
Pressure :
220 ton x 4200 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
LVD PPEB Turbo 220 ton x 4200 mm CNC
Capacity: 220 ton x 4200 mm
Backgauge: CNC
Control: Cadman B + Touch
Passage between uprights: 3820 mm
Max stroke: 350 mm (option)
Max distance between table – ram: 570 mm (option)
Depth of throat: 405 mm
Table width: 120 mm
Locking speed: 120 mm/sec
Working speed: 20 mm/sec
Returning speed: 200 mm/sec
Electric motor power: 42 kW
Length: 6320 mm
Depth: 2850 mm
Height: 3600 mm
Weight: 20.6 ton
Axes: 8 axes (Y1 / Y2 / X / R / Z1 / Z2 / X' / V)
Easy Form Laser measuring system (EFL)
CNC bombation
Lazer Safe protection
Willa hydraulic clamping
2 plate supports
