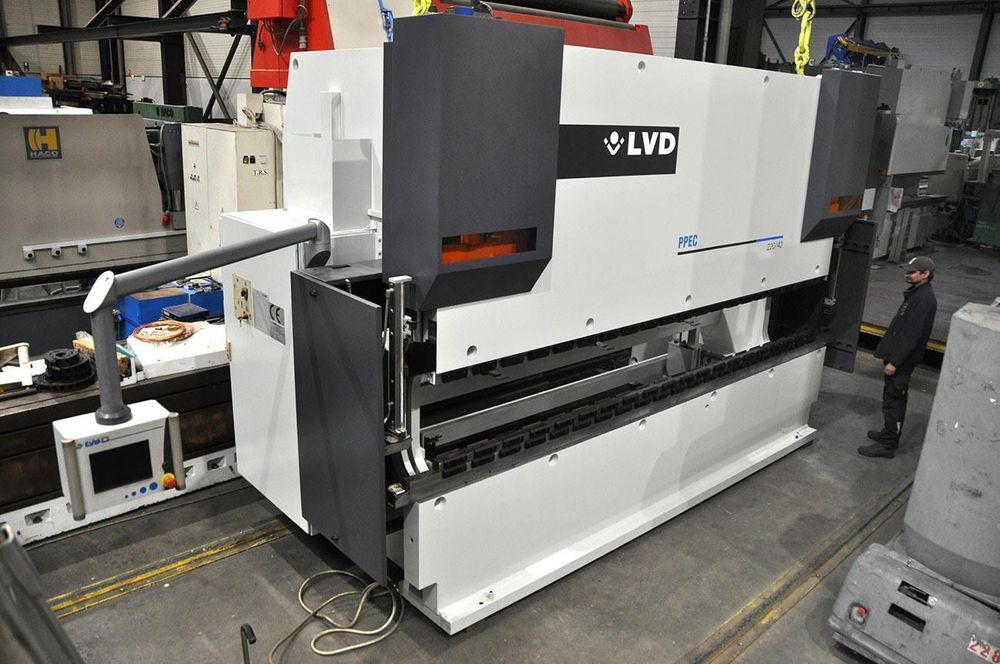

LVD PPEC 220 ton x 4200 mm CNC 220 ton
Ref :
2734697-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPEC 220 ton x 4200 mm CNC
Pressure :
220 ton
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 220 ton
Bending length: 4200 mm
Backgauge: CNC
Passage between uprights: 3820 mm
Max stroke: 250 mm
Max distance table to ram: 485 mm (700 mm)
Throat depth: 400 mm
Locking speed: 100 mm/sec
Working speed: 9.5 mm/sec
Returning speed: 110 mm/sec
Electric motor power: 22 kW
Weight: 20 ton
Axes: Y1 / Y2 / X / R / V
Tooling: Upper and lower Amada system tooling
Safety system: Lasersafe
