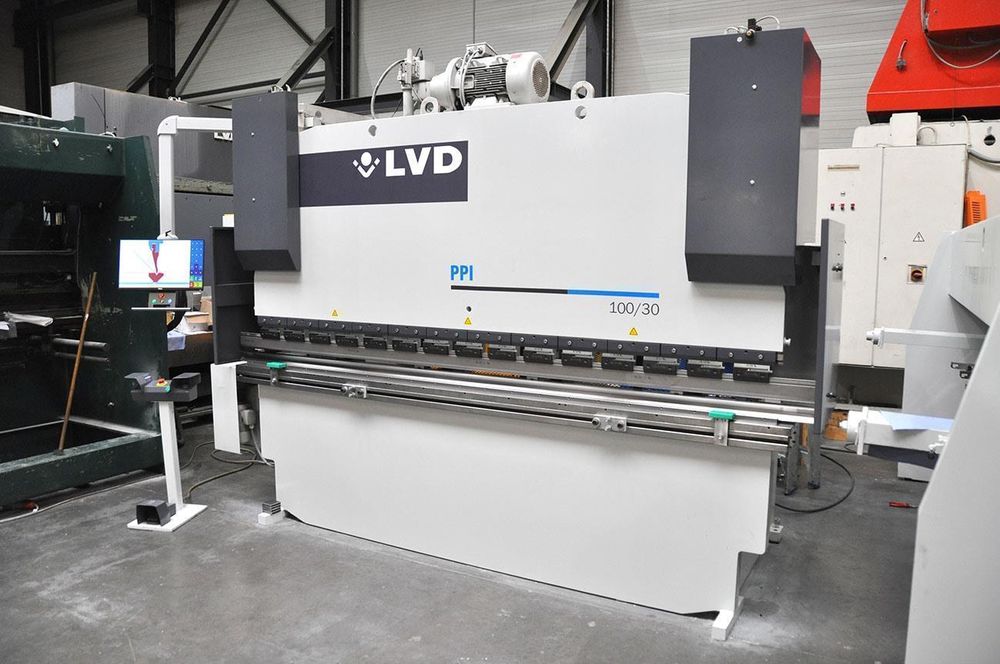

LVD PPI 100 ton x 3100 mm CNC
Ref :
2734421-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPI
Pressure :
100 ton x 3100 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Pressing force: 110 t
Bending length: 3100 mm
Backgauge: CNC
Control: 2D Touch
Passage between uprights: 2550 mm
Max stroke: 200 mm
Max distance between table and ram: 400 mm
Throat depth: 250 mm
Table width: 180 mm
Locking speed: 100 mm/sec
Working speed: 10 mm/sec
Returning speed: 78 mm/sec
Electric motor power: 14 kW
Machine length: 3160 mm
Machine depth: 2365 mm
Machine height: 2750 mm
Machine weight: 7500 kg
Number of axes: 3 (Y1 / Y2 / X)
