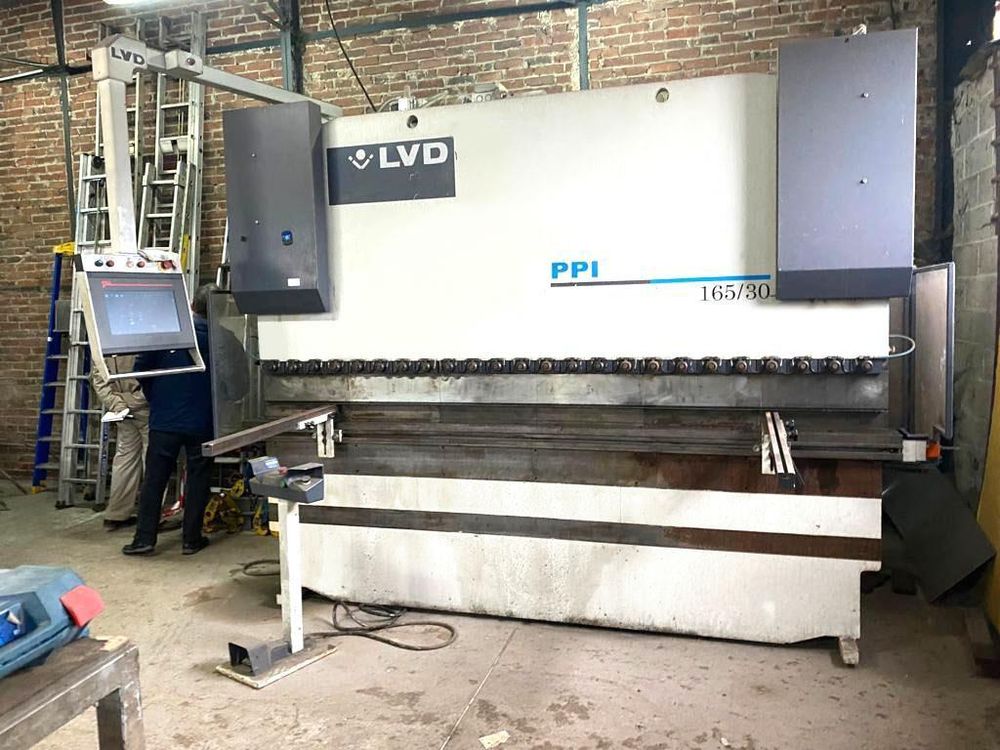

LVD PPI 165 ton x 3100 mm CNC
Ref :
2727066-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPI
Pressure :
165 ton x 3100 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
LVD PPI 165 ton x 3100 mm CNC
capacity 165 ton x 3100 mm
backgauge CNC
control Esa S640 Touch
passage between uprights 2550 mm
max stroke 200 mm
max distance between table and ram 400 mm
depth of throat 250 mm
table width 180 mm
locking speed 100 mm/sec
working speed 6.5 mm/sec
returning speed 60 mm/sec
electric motor power 14 kW
length 3160 mm
depth 2365 mm
height 2810 mm
weight 8.5 ton
Y1 / Y2 / X / R / Z synchro
manual crowning
backgauge with 4 fingers
LVD upper and lower hydraulic tooling
