LVD PPI 170 ton x 4200 mm CNC
Ref :
2721025-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPI
Pressure :
170 ton x 4200 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

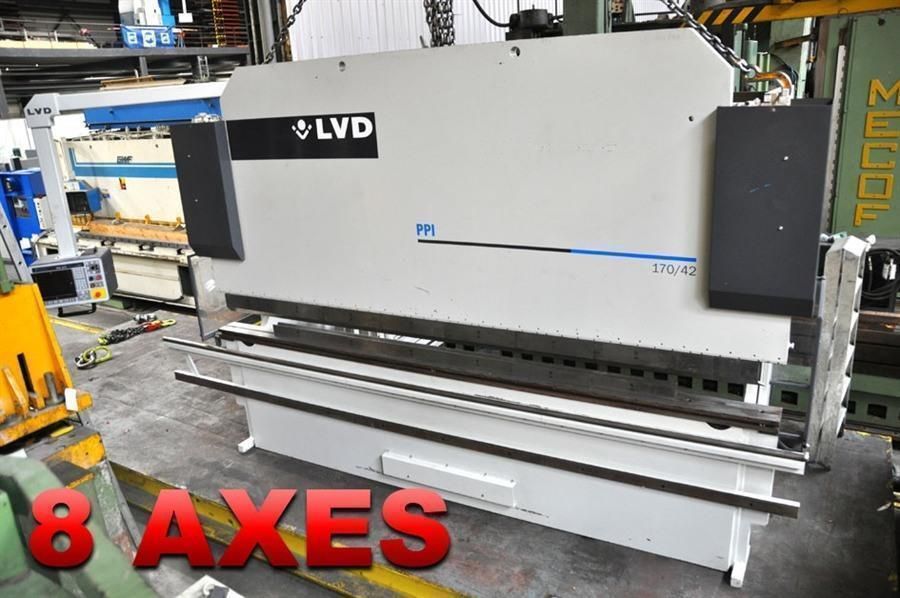

LVD PPI 170 ton x 4200 mm CNC
Capacity 170 ton x 4200 mm
Backgauge CNC
Control 2D Touch
Passage between uprights 3680 mm
Max stroke 200 mm
Max distance between table and ram 400 mm
Depth of throat 250 mm
Table width 180 mm
Locking speed 100 mm/sec
Working speed 6.5 mm/sec
Returning speed 60 mm/sec
Electric motor power 14 kW
Length 5150 mm
Depth 2320 mm
Height 3010 mm
Weight 12.5 ton
8 axes CNC: Y1 / Y2 / X1 / X2 / R1 / R2 / Z1 / Z2
Duo backgauge
Hydraulic clamping LVD tools
Hydraulic bombation
2 front plate supports
