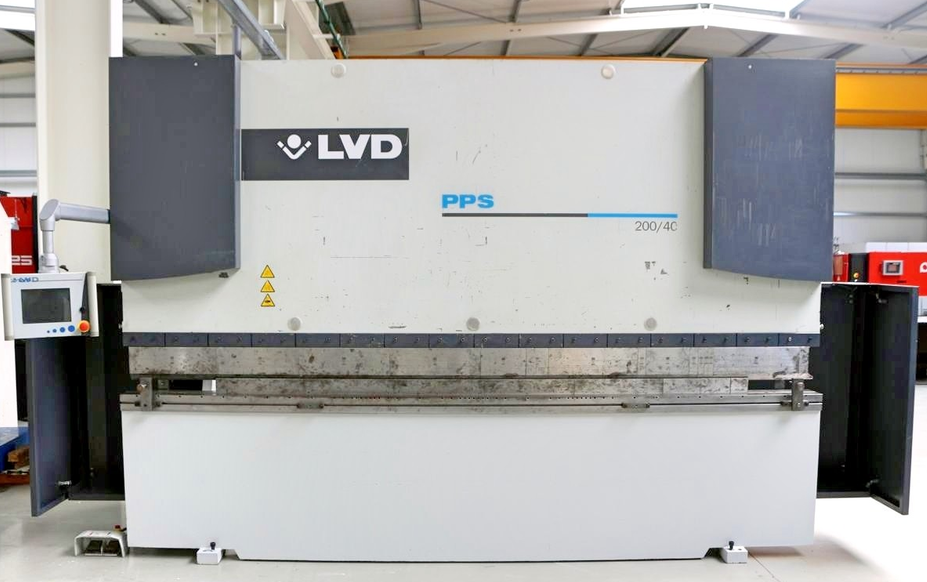

LVD PPS TS 200/4000 200 t

Press force: 200 t
Maximum bending length: 4100 mm
Distance between columns: 3150 mm
Upper beam stroke: 200 mm
Daylight: 425 mm
Throat depth: 300 mm
Working speed: 9.0 mm/s
Return speed: 90.0 mm/s
Maximum working height: 980 mm
Backgauge travel: approx. 700 mm
Control: PPS-TS Touch CNC
CNC-controlled axes: Y1, Y2, X
Motorized X-axis backgauge
4 manually adjustable backgauge fingers
Backgauge Z-axis adjustment
Backgauge R-axis adjustment
LVD sectionalized goose-neck upper tool
LVD sectionalized 1V lower die
2 front support arms
Side safety guards
Rear safety guard
Movable foot pedal
Oil tank capacity: 350 l
Power: 18.0 kW
Weight: 12000 kg
Machine dimensions: 5100 × 1950 × 2850 mm
Machine documentation
