LVD PPS-TS 200 ton x 4100 mm CNC
Ref :
2728115-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
PPS-TS
Pressure :
200 ton x 4100 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

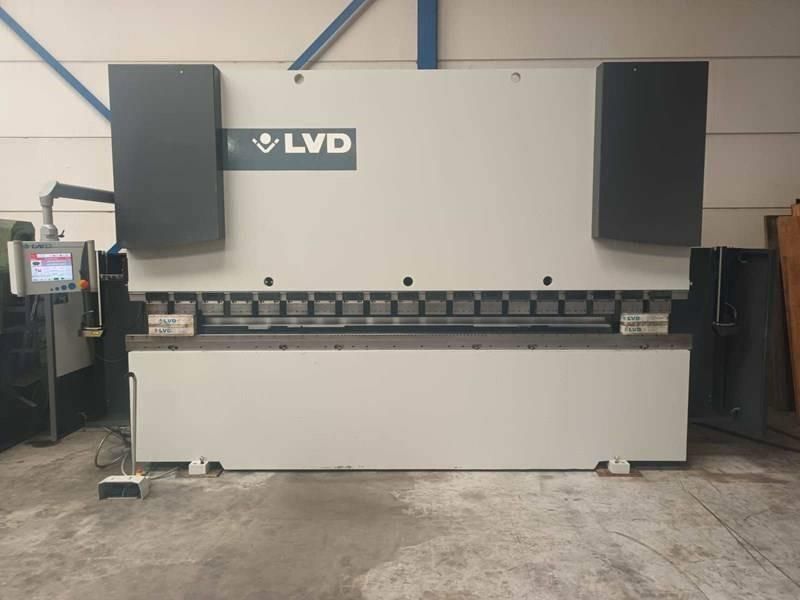

LVD PPS-TS 200 ton x 4100 mm CNC
Capacity 200 ton x 4100 mm
CNC backgauge
Cadman Express control
Passage between uprights 3150 mm
Maximum stroke 200 mm
Maximum distance between table and ram 425 mm
Throat depth 300 mm
Locking speed 80 mm/sec
Working speed 9 mm/sec
Returning speed 90 mm/sec
Electric motor power 23 kW
Length 5100 mm
Depth 1900 mm
Height 2850 mm
Weight 12 ton
Y1 / Y2 / X axes
Lasersafe security system
Cadman Express touchscreen
Amada upper tooling included
Willa upper adaptor clamps included
Lower flattening die
