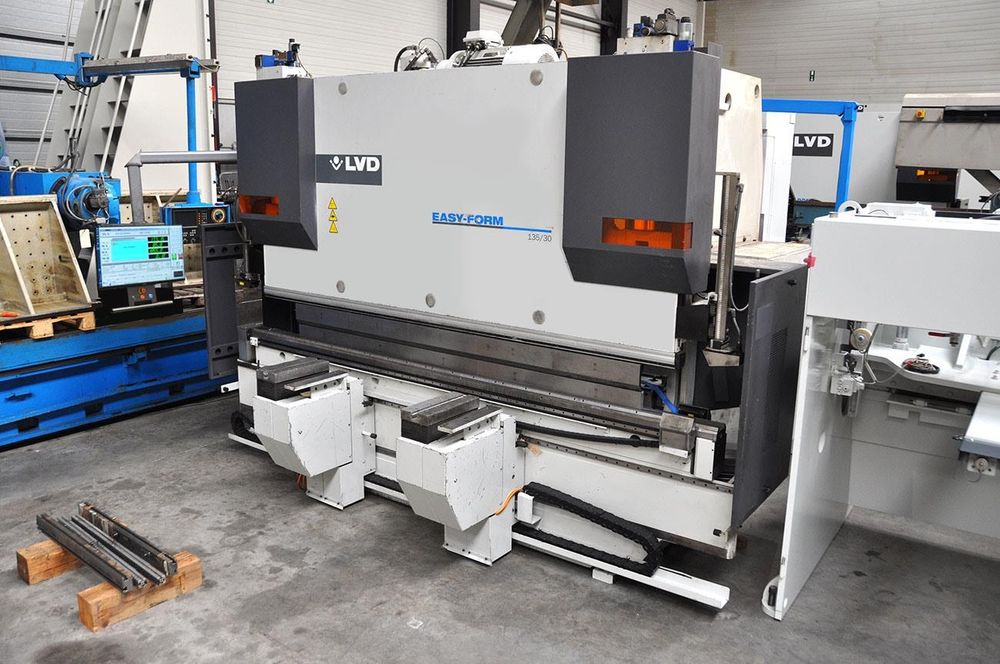

LVD TURBO PPEB 135 TON X 3100 MM CNC
Ref :
2729576-3-CP
Condition :
Used
Manufacturer :
LVD
Model :
TURBO PPEB
Pressure :
135 TON X 3100 MM CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
LVD TURBO PPEB 135 TON X 3100 MM CNC
Capacity: 135 ton x 3100 mm
Backgauge: CNC
Control: Cadman B + Touch
Passage between uprights: 2600 mm
Max stroke: 200 mm
Max distance between table and ram: 400 mm
Depth of throat: 400 mm
Table width: 120 mm
Locking speed: 180 mm/sec
Working speed: 22 mm/sec
Returning speed: 195 mm/sec
Electric motor power: 22 kW
Weight: 11 ton
Turbo version
10 axes: Y1, Y2, X, X', R, Z1, Z2, V, T1, T2
Easy Form Laser measuring system (EFL)
T1 and T2 CNC controlled bending aids
Upper and lower hydraulic Willa tooling system
Laser safe protection
