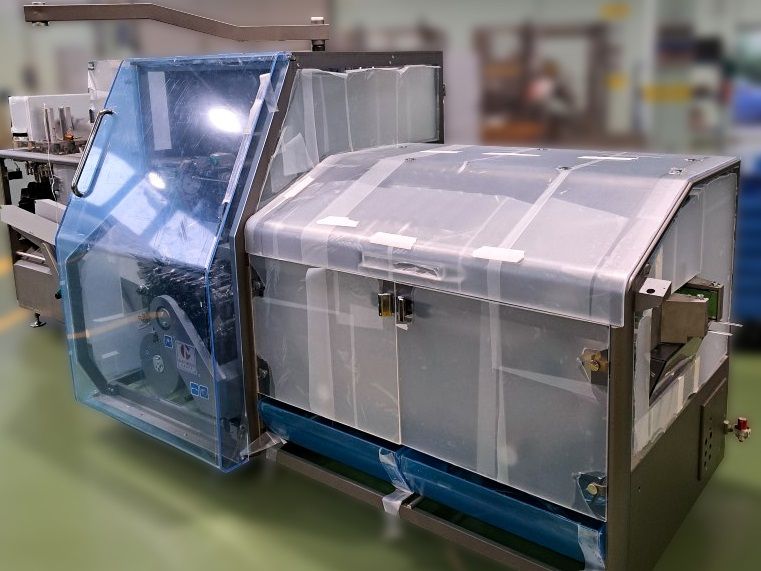

MA 350, Automatic continuous motion cartoning machine for blister

The Marchesini MA35o is an automatic continuous motion high speed horizontal cartoning machine,
machine for blister. Cartoner suitable to pre break and to open either reverse or straight tuck-in three flap cartons,
insert product, which has been delivered to infeed, close cartons and discharge.

Main Features
This Cartoner is designed to satisfy high quality performance, and is built with new technologies and thorough experience in this field. It has the advantage of small space requirements and, at the same time, offers a strong basic structure and high safety performance.
In the machine design, cGMP norms have been followed and the machine is delivered with the Πmark. The working area is a balcony type layout.
A vertical steel panel divides the mechanical machine part, on the rear side, from the working area and carton-leaflet transport on the front (operator) side.
The cartoning section is composed of two enclosed drive units for carton transport and closing movements, running in oil bath. One section is mounted fix and the other one adjustable and servo motor driven to suit the carton length (“h” dimension. Drive units are chain driven and bevel gears enclosed in boxes with lubrication from oil bath.
The lower backside of the machine, in a dedicated compartment, encloses the main slow start servo motor with torque control and the dry Type BECKER vacuums pump. Vacuum distributions achieved mechanically and locking solenoids. Vacuum for carton and a PIAB Venturi Type pump obtains eventually mounted leaflet pick-up.
Specially designed sloping surfaces below carry any ejected items towards the operator, collecting them in proper bins. Easy cleaning. Easy clearance of packing residues.
Leaflet feeding units, if included as optional equipment, are within the safety guard so reducing noise.
Easy size adjustments with hand wheel and digital indicators.
