Macchi 3-LAYERS Blown film co-extrusion line

This Macchi 3-layer blown film co-extrusion line is designed for the production
of high-quality polyethylene films with outputs of up to 800 kg/h.
The line processes LDPE, LLDPE, MLDPE and HDPE and is suitable for manufacturing collation shrink film,
gusseted shrouds, stretch hood film, tubing and sheeting

Materials to be processed:
LLDPE/LDPE/LLD/HDPE
Extruders: 65 mm + 80 mm + 65 mm
Infrared heaters
3pcs plate filters

Head:
3 Layer blown film Die head TE5303-IBC-350/500
Dies diameter 350 and 400 mm
IBC
Die Gap: 1,8 mm
Output: Up to 800 kg/hour depending on material formulation
Air ring: Dual flow air ring carbon fibre
Take off: Take off 2400 mm wide
Oscillating nips
Motorised side gusseting

Rewind:

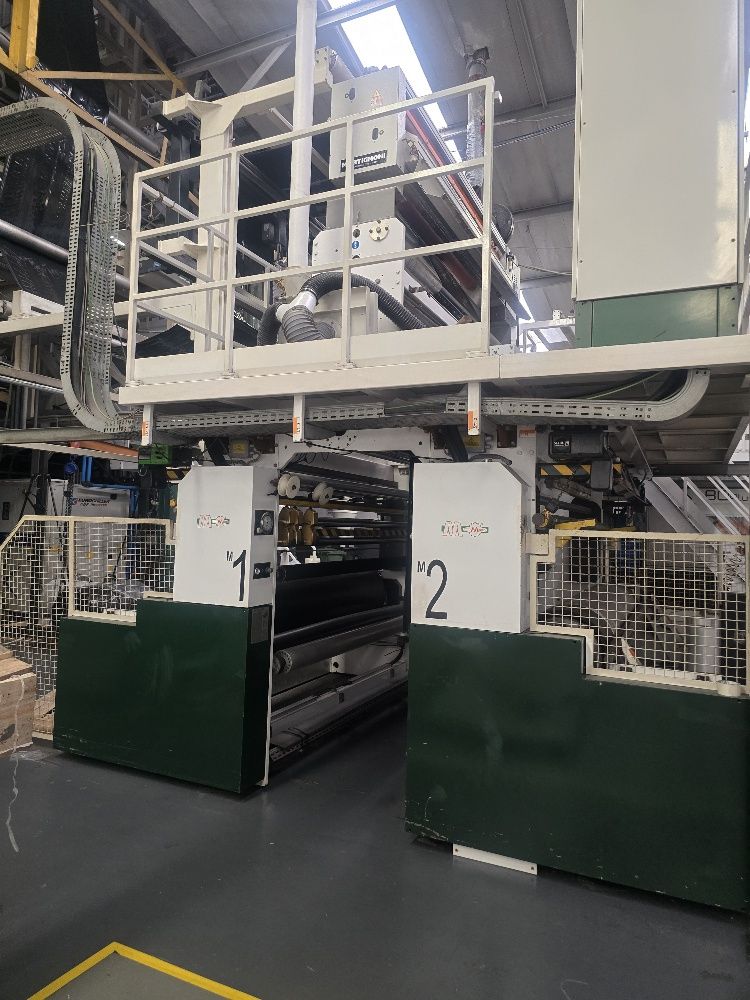

Double winder, fully automatic back-to-back rewinder
Winder, fully automatic roll change
Reels diameter up to 800 mm
Winding width 2350 mm

Accessories:
Tower
Web guide E&L
Gravimetric weight control system Piovan/Doteco
Components blander Shini
Dosing units Doteco
Automatic Thickness control Kundig
K-Design Profile gauge control system
Calibrating basket
Corona-treater Martignoni
Air shafts 8pcs
