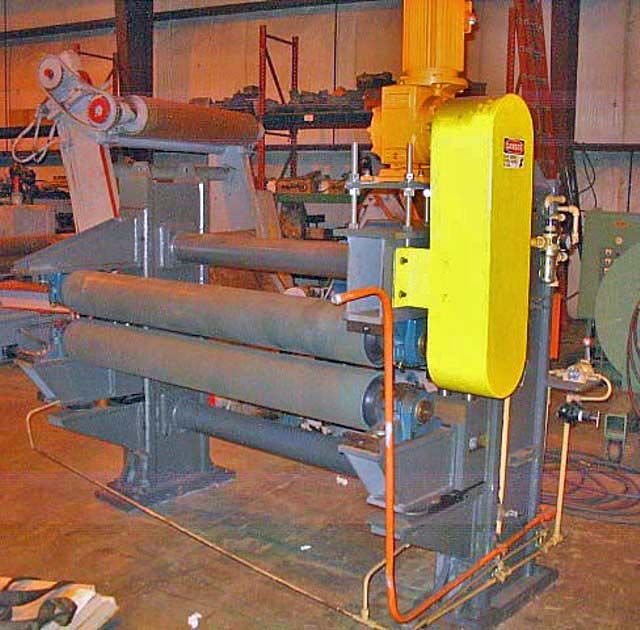

Machine Concepts MC-9534 Pinch Rolls

Ref : 2762543-3-MT

Condition : Used

Manufacturer : -

Model : Machine Concepts MC-9534 Pinch Rolls

Year(s) : 1995

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Capacity: 64" Wide
Roll Diameter: 8"
Roll Face Width: 68"
Roll Covering: Neoprene
Top Roll: Driven
Bottom Roll: Idler
Bottom Roll Lift: Air Bag with Valves and Regulators
Motor: 5 HP Reliance Duty Master AC
Motor Speed: 1725 RPM
Voltage: 230/460 V
Phase: 3
Frequency: 60 Hz
Drive: Thru Dodge R.A. Reducer 12.7:1 Ratio
Belt Drive: To Top Roll
Passline Height: 41"
Overall Dimensions: 98" L x 51" W x 92" H
Weight: 6,000 Lbs
