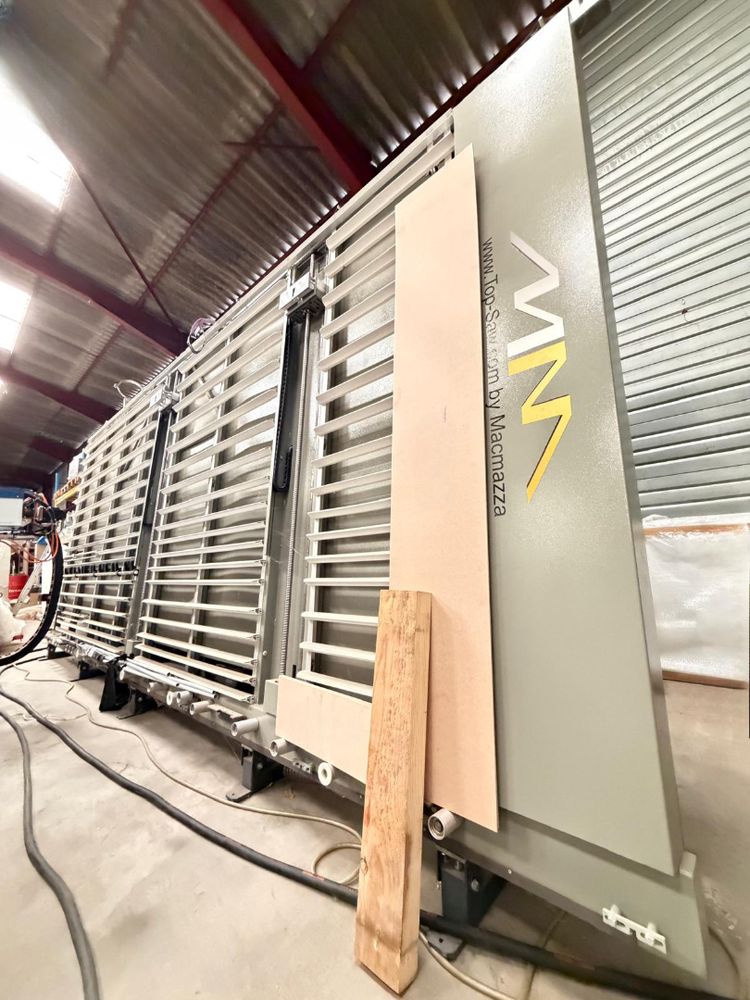

Macmazza TS V

Vertical Panel Saw
Horizontal and vertical cutting length: 5100 mm
Horizontal and vertical cutting height: 2200 mm
Cutting depth: 60 mm
Main blade assembly, diameter 250 mm
Scoring blade assembly with 80 mm tapered blade
Main blade rotation speed: 5800 rpm
Scoring blade rotation speed: 7800 rpm
Solid supporting structure with 5 rear support feet
Automatic mobile frame
Clamping clamps for cutting panels on linear guides
Metal rollers with sliding brakes for panel support
Pneumatic locking of the saw carriage and beam for vertical cutting
Digital display for horizontal cuts with micrometric adjustment
Digital display for vertical cuts with micrometric adjustment
3 metric stops on the beam for horizontal cuts
2 adjustable metric stops for vertical cuts
90 mm suction hose
Electro-pneumatic system to assist the operator in cutting panels up to 2200 mm wide,
maintaining a constant speed to ensure maximum cut quality.
Complete safety device with movement stoppage if the cutting unit is incorrectly positioned
PC + printer + cutting program with on-board cutting pattern display
On-board label printing with real-time management software
Standard power: 3 kW
Weight: approx. 1000 kg
Available immediately
