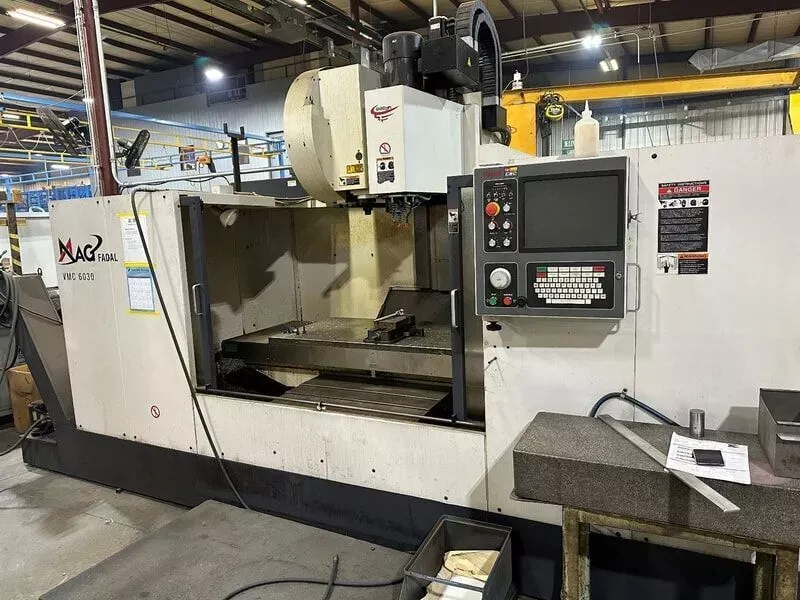

Fadal, MAG VMC-6030HT 3 Axis

MAG Fadal VMC-6030HT
2008

Table Size: 62.5" x 30"
Table Capacity: 4,120 lbs
T-Slots: 5 x 0.709" x 3.75"
Floor to Table Surface: 36"
Spindle Nose to Table Distance: 5.5" – 35.5"
X-Axis Travel: 60"
Y-Axis Travel: 30"
Z-Axis Travel: 30"
Cutting Feed Rate (X/Y/Z): 0 – 400 ipm
Rapid Traverse Rate (X/Y/Z): 400 ipm
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor Power: 22.5 HP
Automatic Tool Changer Positions: 24
Max Tool Diameter: 3" (6" without adjacent tools)
Max Tool Length: 15"
Max Tool Weight: 16.3 lbs
Ball Screw Diameter (X/Y): 1.73"
Ball Screw Diameter (Z): 1.49"
Electrics: 240V
Machine Dimensions: 189" L x 120" W x 134" H
Machine Weight: 17,000 lbs
Fadal Multi Processor CNC Control
Coolant System
Chip Conveyor
