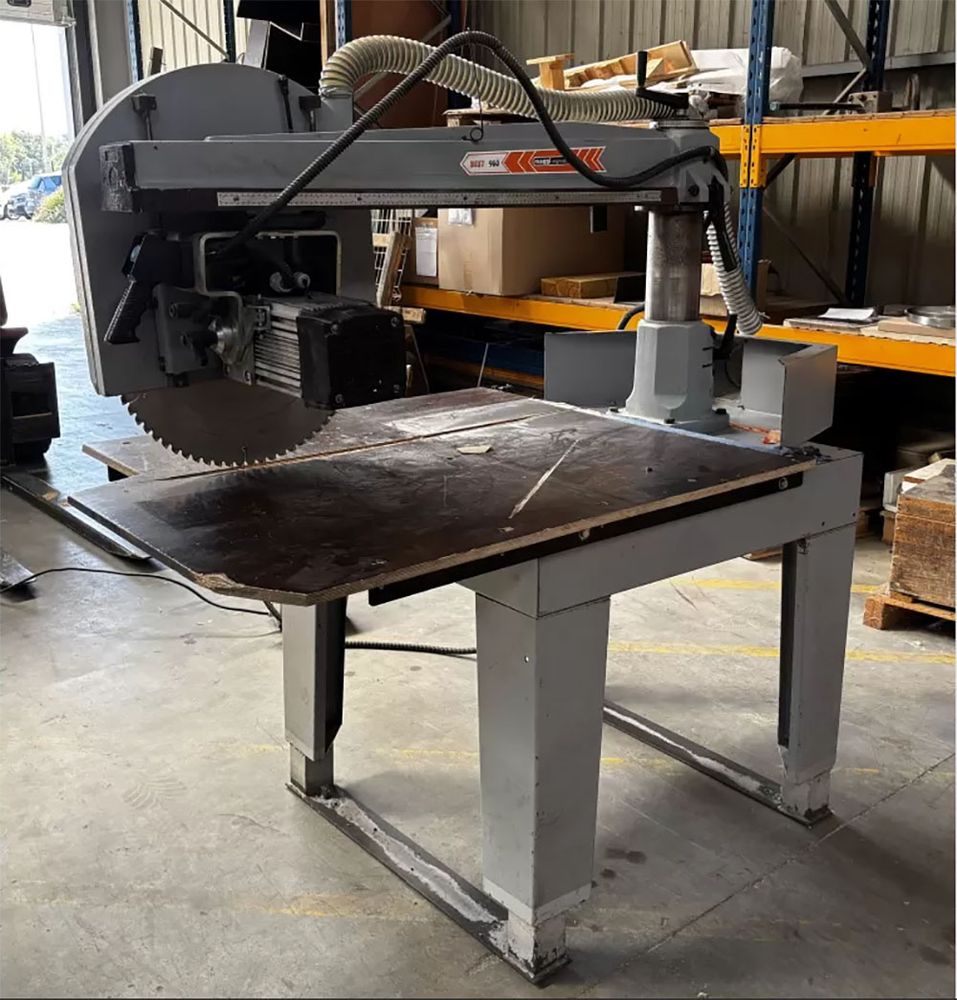

Maggi BEST 960 S RADIAL SAW

RADIAL SAW
MACHINING CAPACITIES (thickness x width):
- Maximum wood section for 90° cut
For example, with a 400mm diameter blade
thickness optimization 125x770 mm
width optimization 20x865 mm
With a Ø550 blade: max thickness 185mm and max width 750mm
- Tilting blade, maximum thickness for 45° cuts:
With a Ø400 blade: 80 mm
With a Ø550 blade: 115 mm
- Adjustable arm +/- 45°
Maximum section with, for example, a Ø400mm blade
Optimized thickness, right-hand oriented arm : 100x565 mm
Optimized arm width, right-hand facing , 20x615 mm
Optimized arm width, left- facing , 20x435 mm
Optimized thickness, left- facing arm : 100x375 mm
- Blade rotation speed 2800 rpm

COMPOSITION :
- Sliding mechanism with 8 bearings
Lifting the arm via the upper handwheel
- Saw blade Ø400 to 550 mm Bore Ø30 mm
- Retractable blade guard
- Table size 1100x1250 mm
- Adjustable table height

OTHER FEATURES :
- General power supply 400v. Three-phase 50Hz
- Saw motor upgraded to 5.5 kW (7.5 hp)
Suction ports Ø120 mm + suction along the blade Ø60 mm
- CE marking, lockable disconnect switch, pong kick stop

Dimensions when in working order: 1100x1900x1800 mm
Weight: 330kg
Machine supplied with a sharpened blade already fitted and documentation
