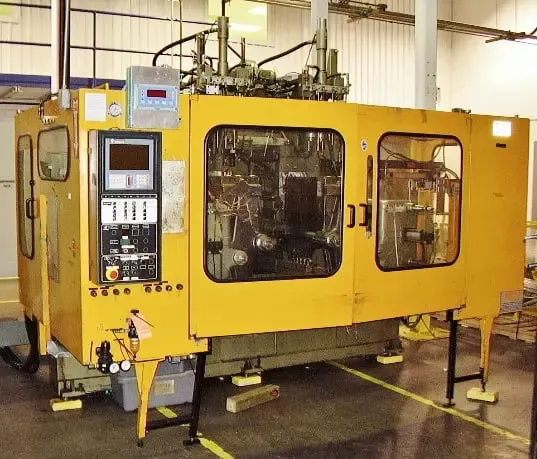

Magic MGL-5D

Number Of Stations 2
Number of Heads 4 x 85mm PE (or) 3 x 115mm
Extruder 90mm
L/D Ratio 24:1
Extruder Horsepower 60 HP Hydraulic Motor
Max Mold Size 360 mm (w) x (2 x 100mm) Stack Height x 400 mm (h)
Max Daylight 420mm
Opening Stroke 210mm
Clamping Force 60 KN
Clamp Hydraulic Drive 40 HP
Dry Cycling 1.8 sec
Machine Weight 27,000 lbs
Note Includes Loading onto Buyer's Truck

Features
Manuals
Ladder & Platform
