Maguire VBD-150

Maguire Vacuum Dryer, Model VBD-150, New in 2014
Maximum Throughput: 150 lbs./hr.
Heating Hopper Capacity: 100 lbs (2.5 cu/ft)
Vacuum Chamber Capacity: 40 lbs (1 cu/ft)
Retention Hopper Capacity: 60 lbs (1.6 cu/ft)
Max. Temperature: 375°F
Process Heater: 11 KW
Blower: 1.1 HP, 105 SCFM
480/3/60, 8.2 FLA
Compressed Air Requirement: 85 PSI
Max Compressed Air Flow Rate: 13.5 SCFM
Average Compressed Air Flow Rate: 5.2 SCFM

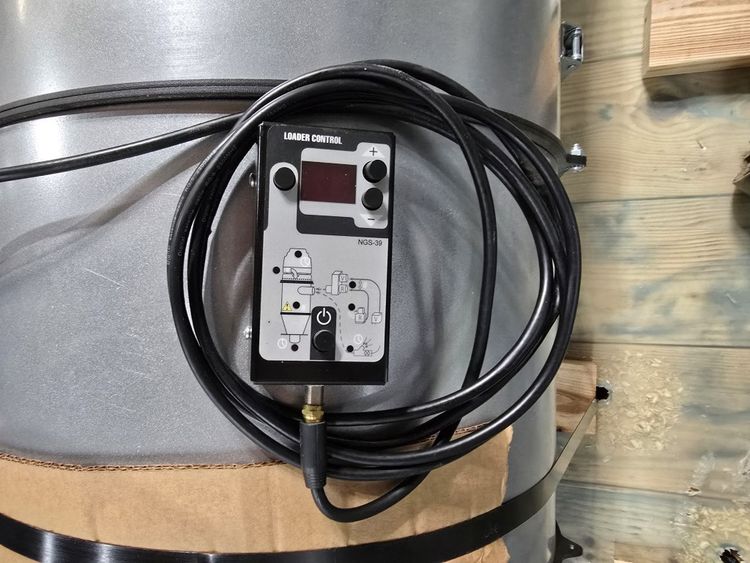

Comes With 12lb Novatec Self-Contained Loader
w/ remote pendant, Model GSL-19
Approximate Dimensions W/ Hopper: 40" L x 26" W x 144" H
