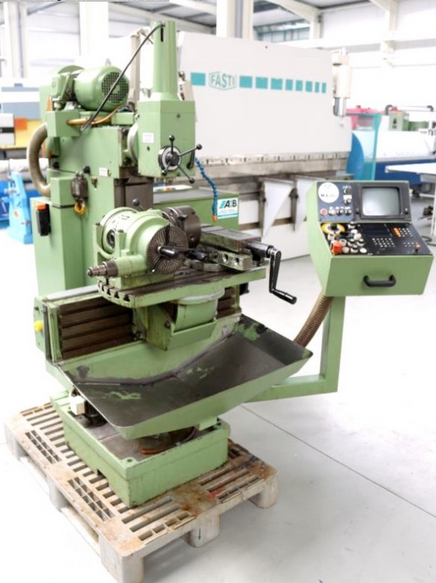

Maho MH 400 P Vertical 3150 RPM

X-Axis Travel 400 mm
Y-Axis Travel 375 mm
Z-Axis Travel 250 mm
Table Size 205 x 800 mm
T-Slots 4 x 45 14 H7
Spindle Taper ISO 40
Spindle Quill Stroke 50 mm
Spindle Speed 50 – 3150 RPM
Control Heidenhain TNC 135
Feedrate X/Z Axis 5.0 – 1000 mm/min
Feedrate Y Axis 5.0 – 670 mm/min
Rapid Traverse 2.4 / 1.6 m/min
Total Power Requirement 5.1 kW
Weight 950 kg
Machine Dimensions 1860 x 1790 x 1750 mm
Tiltable Milling Head
Tiltable T-Slot Universal Table
Vertical Clamping Range
Continuously Variable Speed Adjustment
Manually Extendable Spindle Sleeve
Hardened and Ground Guideways
Electro-Hydraulic Tool Clamp
Coolant System
Front Coolant Tank
Original Operating Instructions
1x RÖHM "RB 110" Hydraulic Vise
1x WALTER "UTA 150 E" Dividing Head
Drawer Cabinet with Accessories
