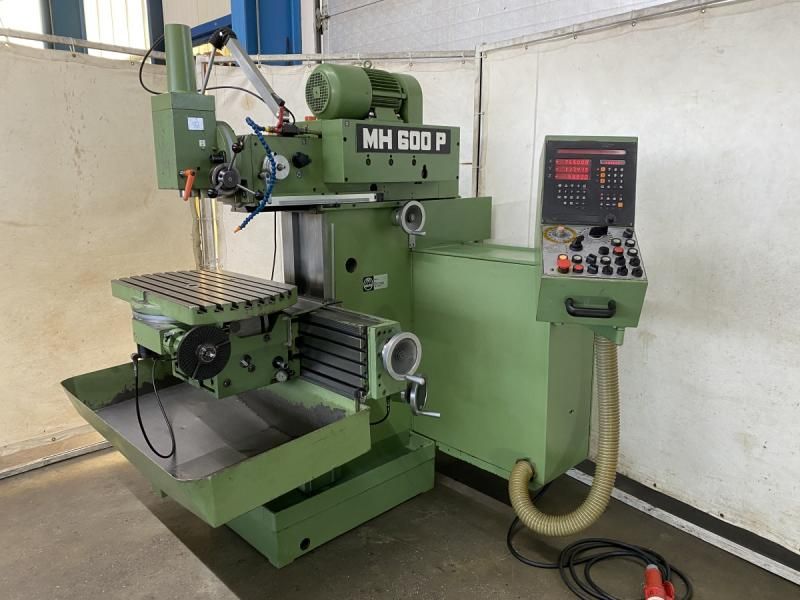

Maho MH 600 P Universal Tool Milling Machine 2000 rpm

X-axis travel: 500 mm
Y-axis travel: 370 mm
Z-axis travel: 400 mm
Control: Heidenhain TNC 131 digital display with positioning control
Vertical milling head swivel: ±90°
Spindle speed: 40 – 2000 rpm
Spindle taper: SK 40
Spindle motor power: 4 kW
Feedrate X Y Z: 5 – 500 mm/min stepless
Rapid feed X Z: 1.2 m/min
Rapid feed Y: 0.8 m/min
Table size: 720 x 410 mm
Horizontal quill travel: 80 mm
Vertical head quill travel: 80 mm
Max distance spindle nose to table: 370 mm
Universal swivel tilt rotary table
Hydromechanical tool clamping
Hydromechanical clamping for table rotation
Table rotation worm gear ratio: 1:120
Direct and indirect table indexing
Central automatic lubrication
Coolant system in machine base
Machine light
Electrical cabinet mounted on machine
Operating manual included
Electrical diagrams included
Machine dimensions: 1800 x 1800 x 1900 mm
Machine weight: 1650 kg
