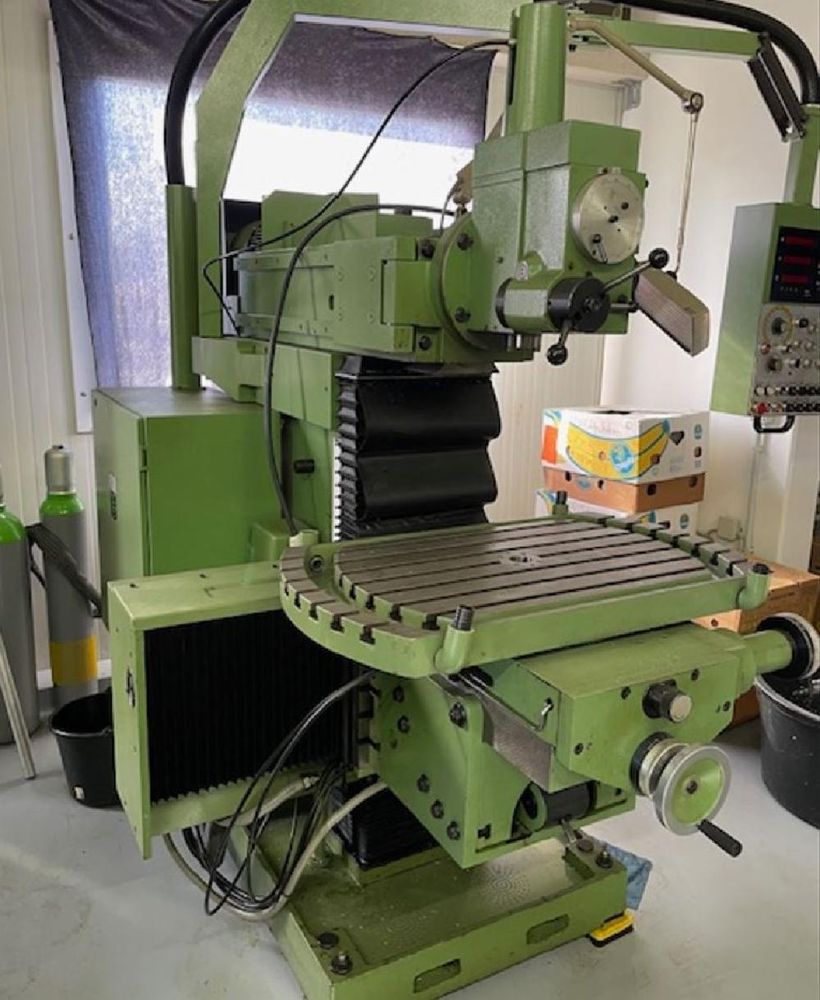

Maho MH 700 P, Vertical 2000 rpm

Heidenhain TNC 121 contouring control
universal built-in rotary table 900 x 500 mm, tilting ±30°
vertical milling head with automatic quill feed
hydro-mechanical tool clamping
machine lamp
tool holders SK 40
hydraulic vice

axis travel X: 600 mm
axis travel Y: 400 mm
axis travel Z: 400 mm
rotary table: tilting ±30°
control: Heidenhain TNC 121
spindle taper: SK 40
spindle speed range: 40–2000 rpm
feed X/Z axis: 1–600 mm/min stepless
feed Y axis: 1–300 mm/min stepless
rapid traverse all axes: 1.5 m/min
quill stroke: 80 mm
spindle drive: 4 kW
weight: 3 t
