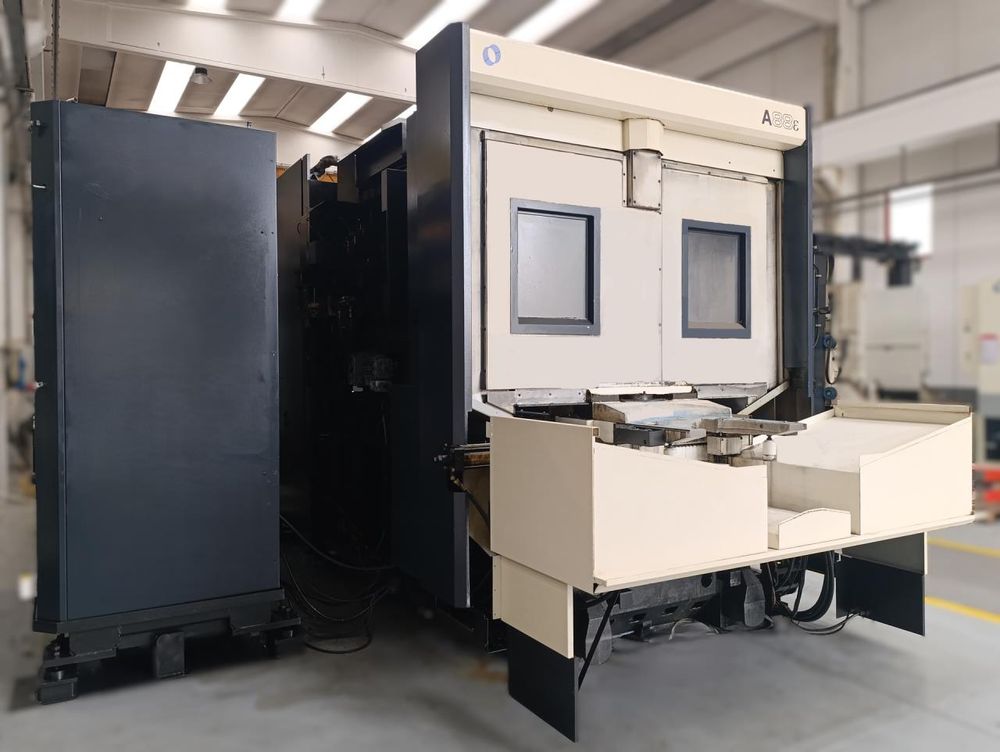

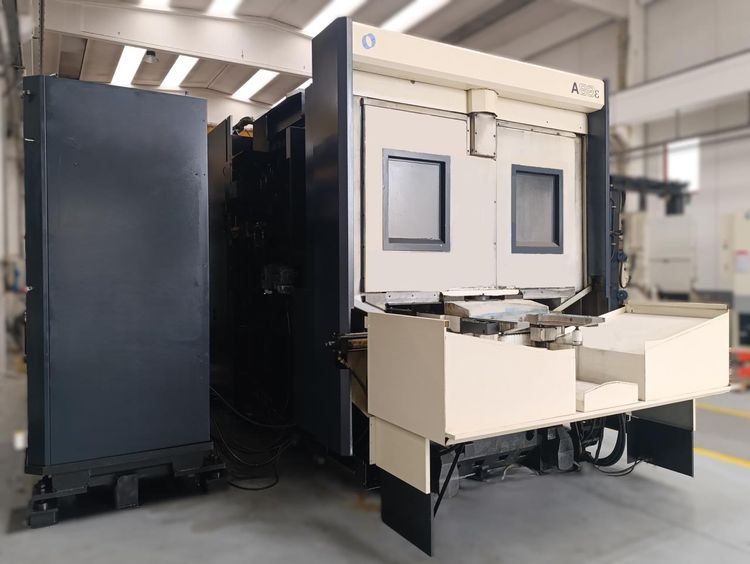

Makino A 88e-A 188 4 Axis

MAKINO A 88e-A 188
Year: 2003

Total number of axes: 4
Number of tables: 2
Table length: 630 mm
Table width: 630 mm
Maximum table load: 1200 kg
X-axis travel: 900 mm
Y-axis travel: 800 mm
Z-axis travel: 970 mm
Tool changer capacity: 188 tools
Spindle nose: HSK-A 100
Spindle speed (stepless) from: 20 rpm
Spindle speed (stepless) up to: 12000 rpm
Spindle motor power: 25 / 30 kW
Voltage: 400 V
Frequency: 50 Hz
Phase: 3
Machine weight: 18000 kg
Machine length: 7562 mm
Machine width: 4329 mm
Machine height: 3151 mm
Control: FANUC 16 Professional 3
Set of toolholders
Years of construction: 1998 / 2001 / 2003
