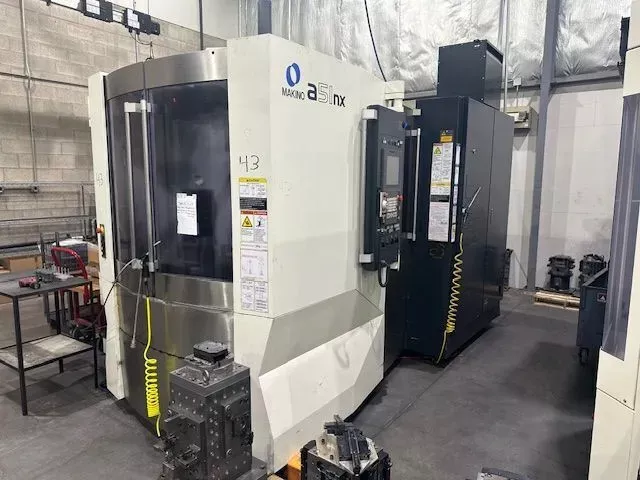

Makino A51NX 4 Axis

MAKINO A51NX
2011

X-axis travel: 22"
Y-axis travel: 25.2"
Z-axis travel: 25.2"
B-axis travel: .0001" N/C contouring
Pallet size: 15.7" x 15.7"
Number of pallets: 2
Pallet weight capacity: 880 lbs
Pallet surface to spindle center: 3.1" – 28.3"
Pallet center to spindle gage line: 3.9" – 29.1"
Rapid traverse (X/Y/Z): 2360 IPM
Cutting feed rate: 1968 IPM
Spindle speed: 14,000 RPM
Spindle taper: CAT 40
Main motor: 30 HP
Automatic tool changer: 60 tools
Tool diameter: 3.76", 6.7"
Tool length: 16.9"
Tool weight: 26.4 lbs
Tool change time: 0.9 sec
Machine weight: 19,620 lbs
FANUC 31i CNC control with Pro 5
12.1" color LCD
320 meters of program storage
200 part programs
Data center 4MB
Full 4th axis N/C rotary table
Ball screw core cooling
200 tool offsets
Tool offset memory C
Helical interpolation
High-speed skip functions
Custom macro (100 variables)
Portable handheld MPG
External setting orientation
2-pallet changer
Chip removal system
Coolant through spindle
Mist collection system
BLUM tool length measurement system
Marposs part probe
Broken tool detection
All available manuals included
