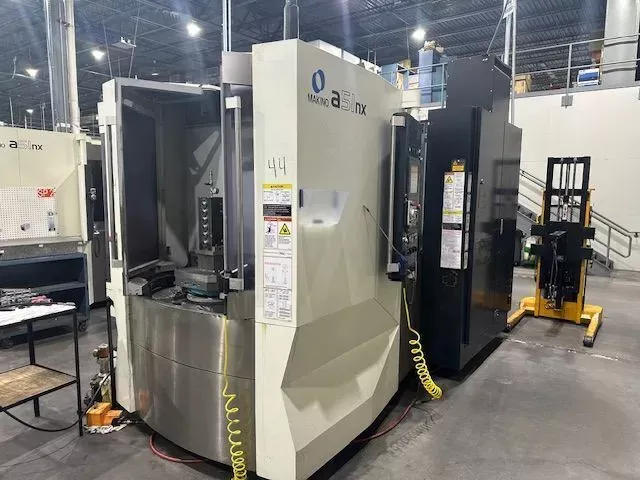

Makino A51NX 4 Axis

MAKINO A51NX
2011

X Axis Travel: 22"
Y Axis Travel: 25.2"
Z Axis Travel: 25.2"
B Axis Travel: .0001" (N/C Contouring)

Pallet Size: 15.7" x 15.7"
Number of Pallets: 2
Pallet Weight Capacity: 880 lbs
Pallet Surface to Spindle Center: 3.1" to 28.3"
Pallet Center to Spindle Gauge Line: 3.9" to 29.1"
Spindle Speed: 14,000 RPM
Spindle Taper: CAT 40
Rapid Traverse X/Y/Z: 2,360 IPM
Rapid Traverse B Axis: 0
Cutting Feed Rate: 1,968 IPM
Main Motor: 30 HP
Automatic Tool Changer Capacity: 60
Tool Diameter (adjacent): 3.76"
Tool Diameter (non-adjacent): 6.7"
Maximum Tool Length: 16.9"
Maximum Tool Weight: 26.4 lbs
Tool Change Time: 0.9 seconds
Machine Weight: 19,620 lbs
Control: FANUC 31i with PRO 5
Display: 12.1" Color LCD
Program Storage: 200 programs
Memory Capacity: 4 MB
Tool Offset Capacity: 200
Tool Offset Memory Type: C

Full 4th Axis N/C Rotary Table
Ball Screw Core Cooling
Helical Interpolation
High Speed Skip Functions
Custom Macro B (100 Variables)
Handheld MPG
External Setting Orientation
2-Pallet Changer
Chip Removal System
Coolant Through Spindle
Mist Collection System
BLUM Tool Length Measurement System
Marposs Part Probe
Broken Tool Detection
All Manuals Included
